Shipping Time may take up to 2 months from the date of the purchase.

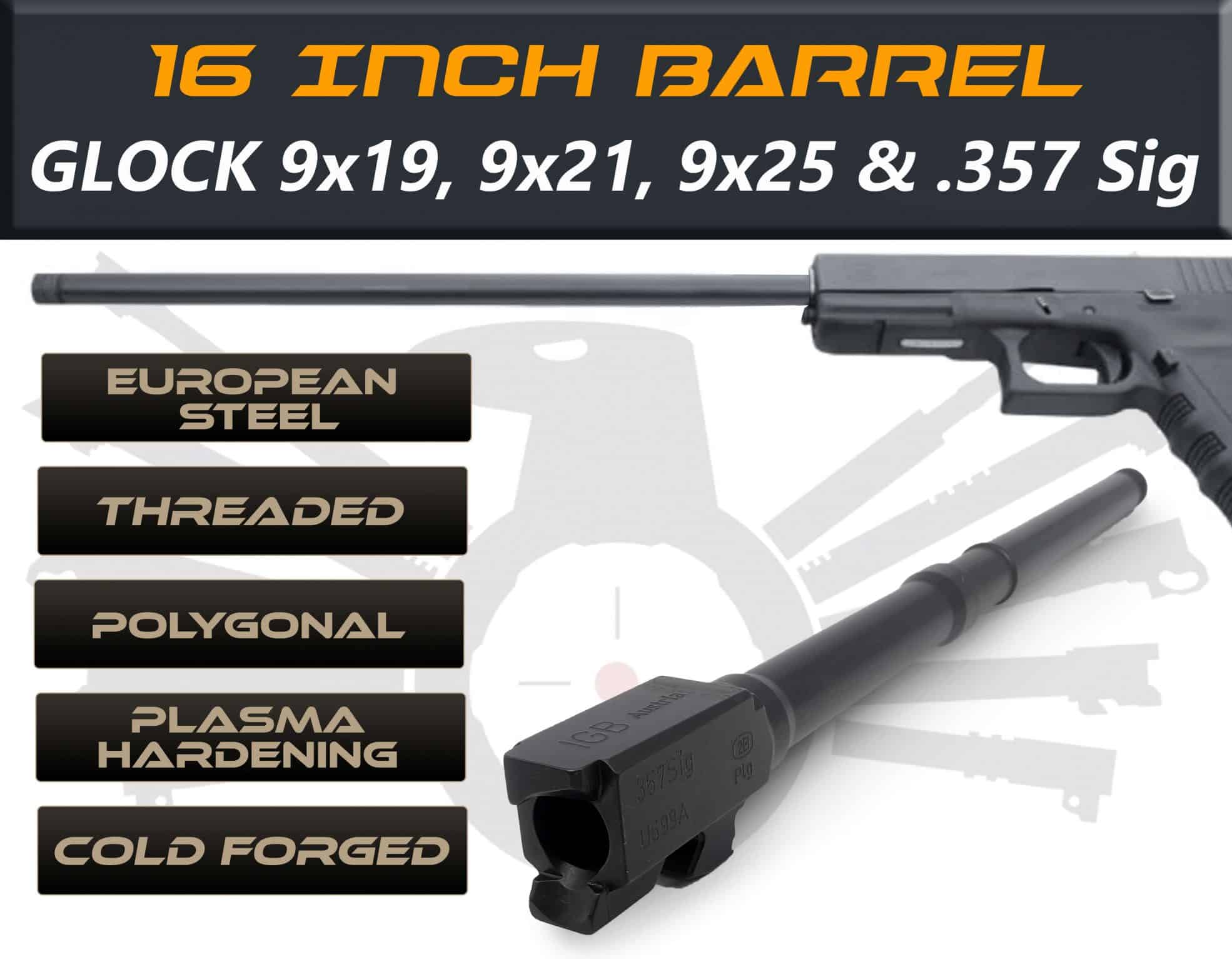

The barrel is compatible with Glock 17, 17L, 34 & 35 Gen 5

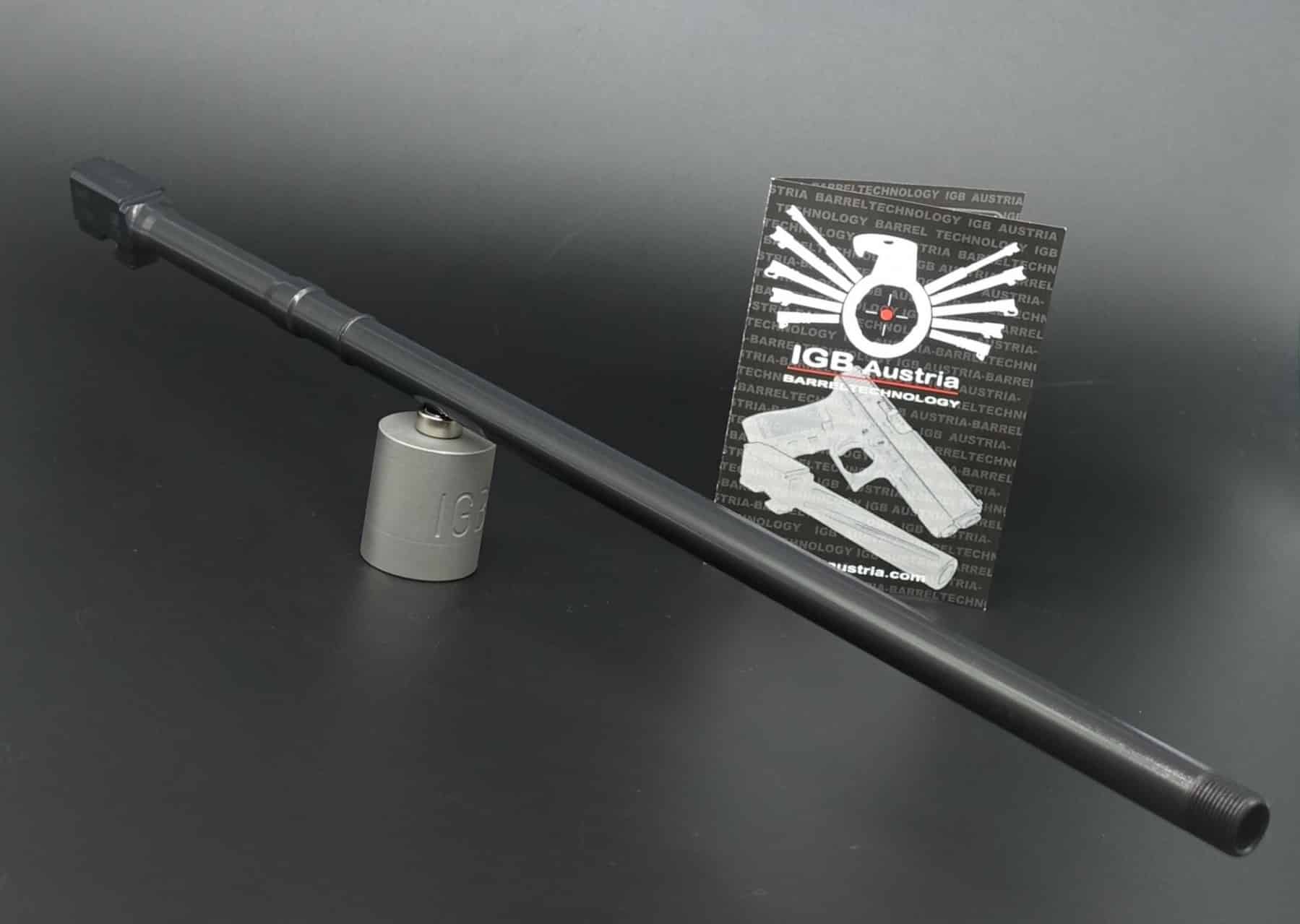

This 16″ Barrel is compatible with Glock Gen 5. It won’t fit Glock Gen 3 and 4! However, If you are interested in a model that does fit the Gen 3 and 4, please press here.
If you are looking for other calibers, such as .40S&W please visit the following page:
|Material:||European High Gradel Barrel Steel|
|Surface color:||very dark grey to black|
|Inner Profile:||IGB Polygonal Profile
|Length:||16" (406 mm)|
|Caliber:||9x19, 9x21, 9x25 & .357 SIG|
|Thread @ Muzzle||None|
|Ammunition||No restriction, but factory ammo recommended|
|Semi-auto function:||Engineered for use with a stock system!|
|Twist Rate||1:10 Inch|
|Quality||IGB Barrels are all Match Grade|
How to use:
|Field strip your gun - follow gun manufacturers manual!|
|Step 1:||Replace your barrel with the IGB barrel|
|Step 2:||Reassemble the gun|

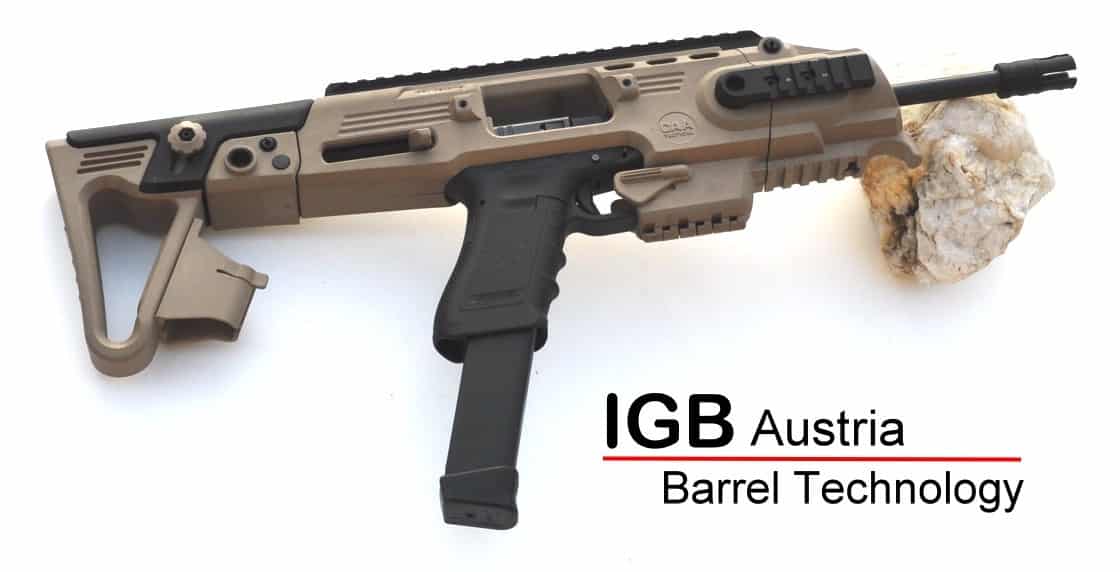

|Step 3:||Attach your stock system|
Shipping & Warranty:
|Warranty||Satisfaction Guarantee. Factory ammo and proper stock system required.|
|Shipping||From our warehouse in the US.|
|Average Delivery Time||1-5 Business days if in stock in the warehouse in Las Vegas, otherwise up to 7 weeks if sent from Europe.|
IGB Austria Barrel Manufacturing Process:
[/vc_column_text][vc_column_text]During every shot which is fired from a standard barrel, the bullet powder usually continues to burn after the bullet exits the muzzle. This is felt by the flip and seen by the muzzle fire.[/vc_column_text][vc_single_image image="100063" img_size="medium"][/vc_column][vc_column width="1/4"][vc_column_text]
[/vc_column_text][vc_column_text]of a longer barrel, ensuring total powder burning inside the barrel without sacrificing the operation of the gun. Thus eliminating common malfunctions which frequently occur. By implementing these longer barrels, higher velocities are achieved while muzzle jump and recoil are greatly minimized.[/vc_column_text][vc_single_image image="100064" img_size="medium"][/vc_column][vc_column width="1/4"][vc_column_text]
[/vc_column_text][vc_column_text]Fig.2 When the bullet passes the ports, inside - in the Impulse chamber - the gas pressure is build up and the gas is then pushing the impulse ring on to the slide.
Fig. 3 After the bullet has exited the barrel, and the next cartridge has been loaded, the slide pushes the impulse ring back into its starting position.[/vc_column_text][vc_single_image image="100065" img_size="medium"][/vc_column][vc_column width="1/4"][vc_column_text]
[/vc_column_text][vc_column_text]The IMPULSE SYSTEM uses powder gases, collected via ports in the barrel and transfers this energy via a hollow chamber (gas collector or impulse chamber) and a sliding element (impulse transfer ring) to the slide. This impulse equalizes the mass irregularities and allows reliable function even with heavier or longer barrels.

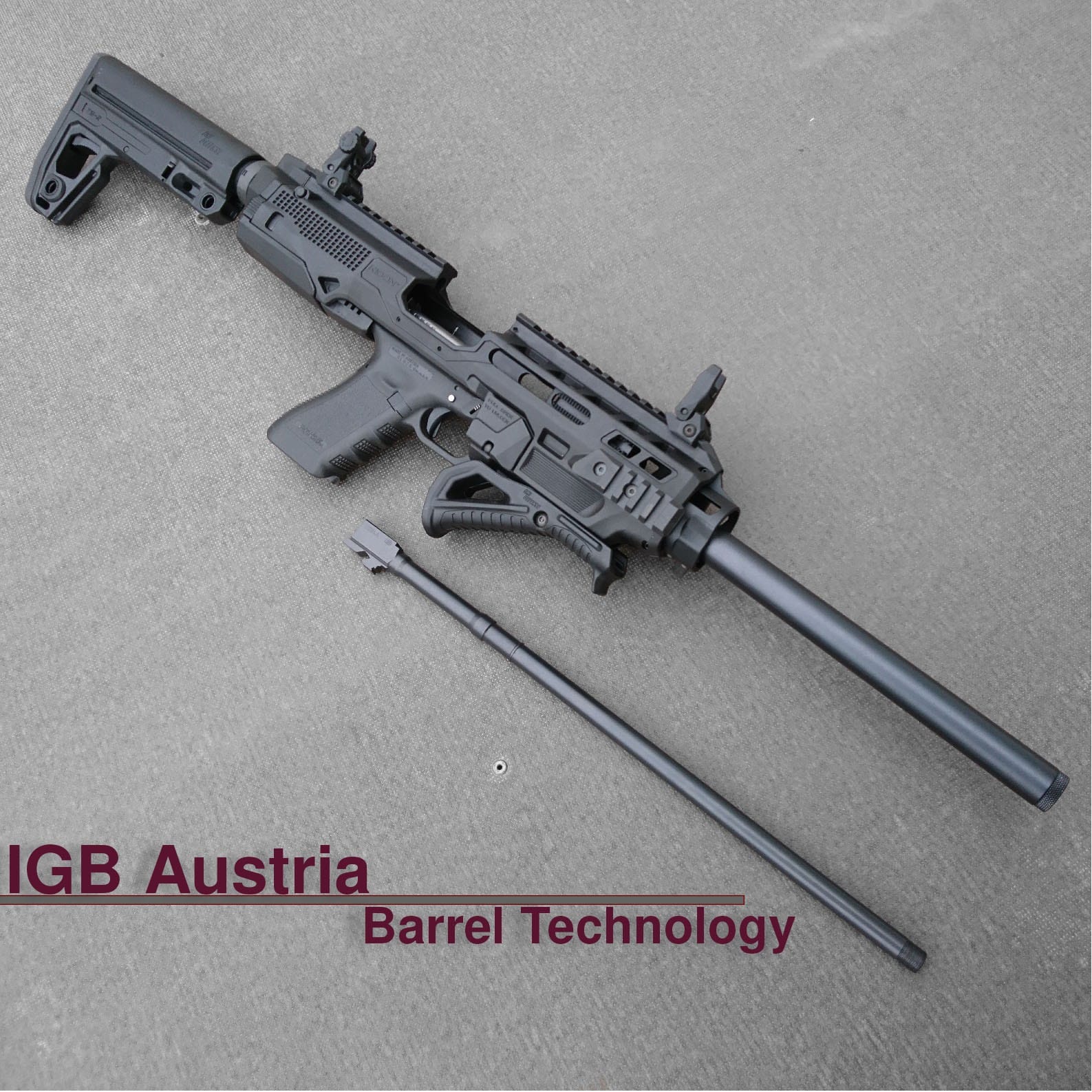

-----Abb. Glock 17 with 16" IGB barrel and shroud attached to the barrel.[/vc_column_text][vc_single_image image="100116" img_size="medium"][/vc_column][/vc_row][vc_row][vc_column width="1/2"][vc_column_text]

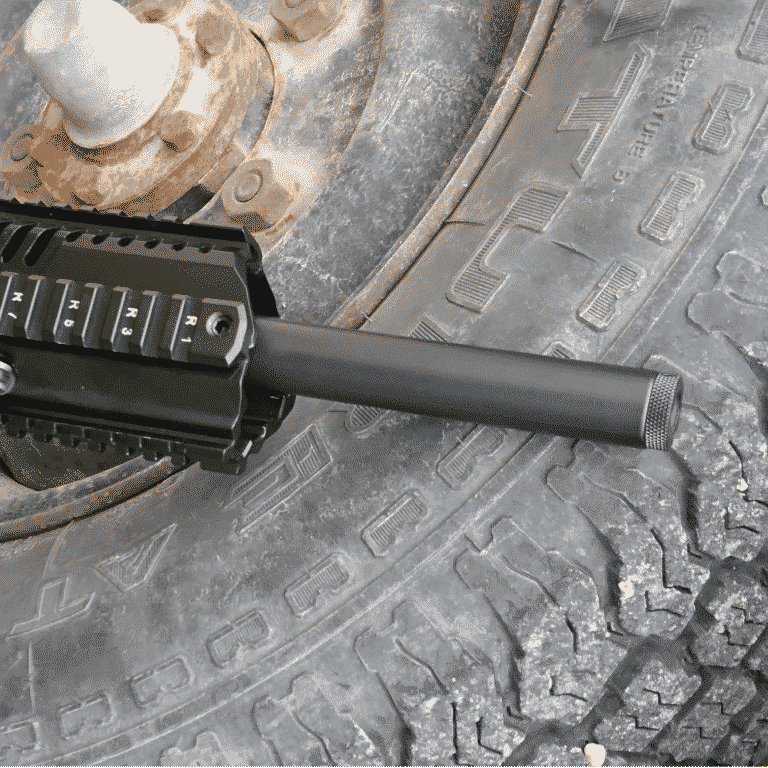

[/vc_column_text][vc_column_text]The Impulse System was developed to eQualityuip pistols, which dispose of a Browning type lockup (i.e. Glock, Colt, CZ ) with barrels up to 42 cm (16") length. Moreover, these units offer for the first time the advantage of using compensators or longer match barrels in combination with target loads. Abb. Glock 17 with IGB 10" barrel and matching shroud. [/vc_column_text][vc_single_image image="100061" img_size="medium"][/vc_column][vc_column width="1/2"][vc_column_text]

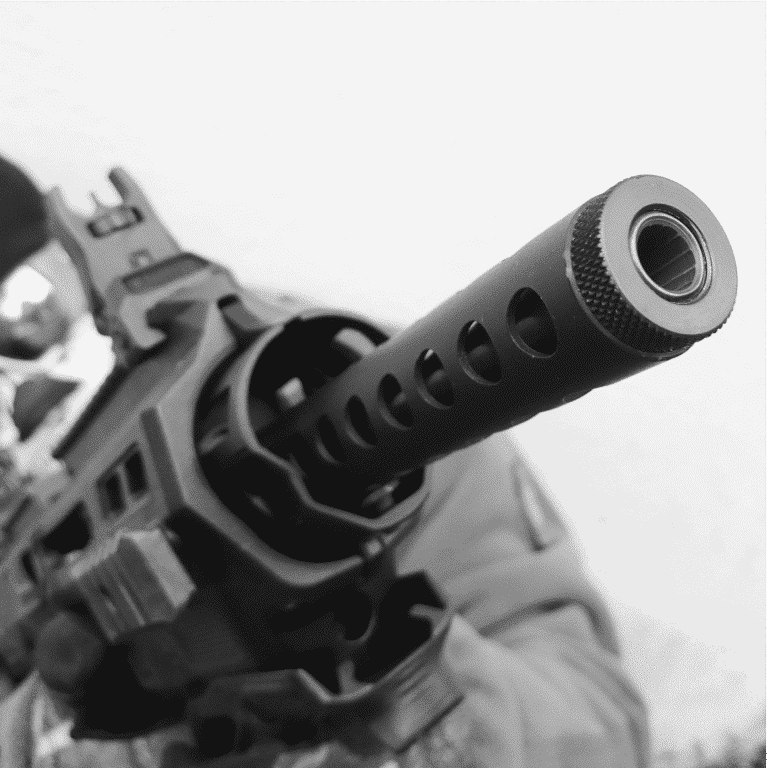

[/vc_column_text][vc_column_text]The optical impression is similar to a sound suppression device. The IGB shroud, due to its open construction, does not suppress the sound, nor can it be altered to do so. The IGB shroud protects the barrel or the shooters hand against burns.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Test Report - "Swiss Gun Magazine" - Juni 2003
...due to the lack of mass to be moved - relative to a blowback design - the long barrel combination of 9mm Luger shoots calmly.
.. shooting caliber .357Sig is a little more exciting. Somewhat more kick, but not uncomfortable at all - and nowhere near the felt recoil of the Glock standard barrels in models 31 and 32.
... It became a very fun shooting, and more ammunition as originally planned was expended due to the 30 round magazine.
You may visit our IGB FAQ page for more information: General Information About IGB Barrels
There are Additional Models That are Available in Different Calibers:
Some Also Available for Different Threding:
About the Company:
Pistol shooting is a top-level sport
Major advantage gives a precision match barrel, which differs from the original barrel by best fitting, special profiles and last, but not least, by high-end steel material of high viscosity. In contrast to stainless - high-end steel with special hardening preserves the viscosity and lifetime of a barrel. No broken ramps, no cracking of cartridge housings. Lasting best results.
Standard was yesterday... Barrel Technology by IGB Austria is the TODAY.
State-of-the-Art - Barrel Technology from Austria

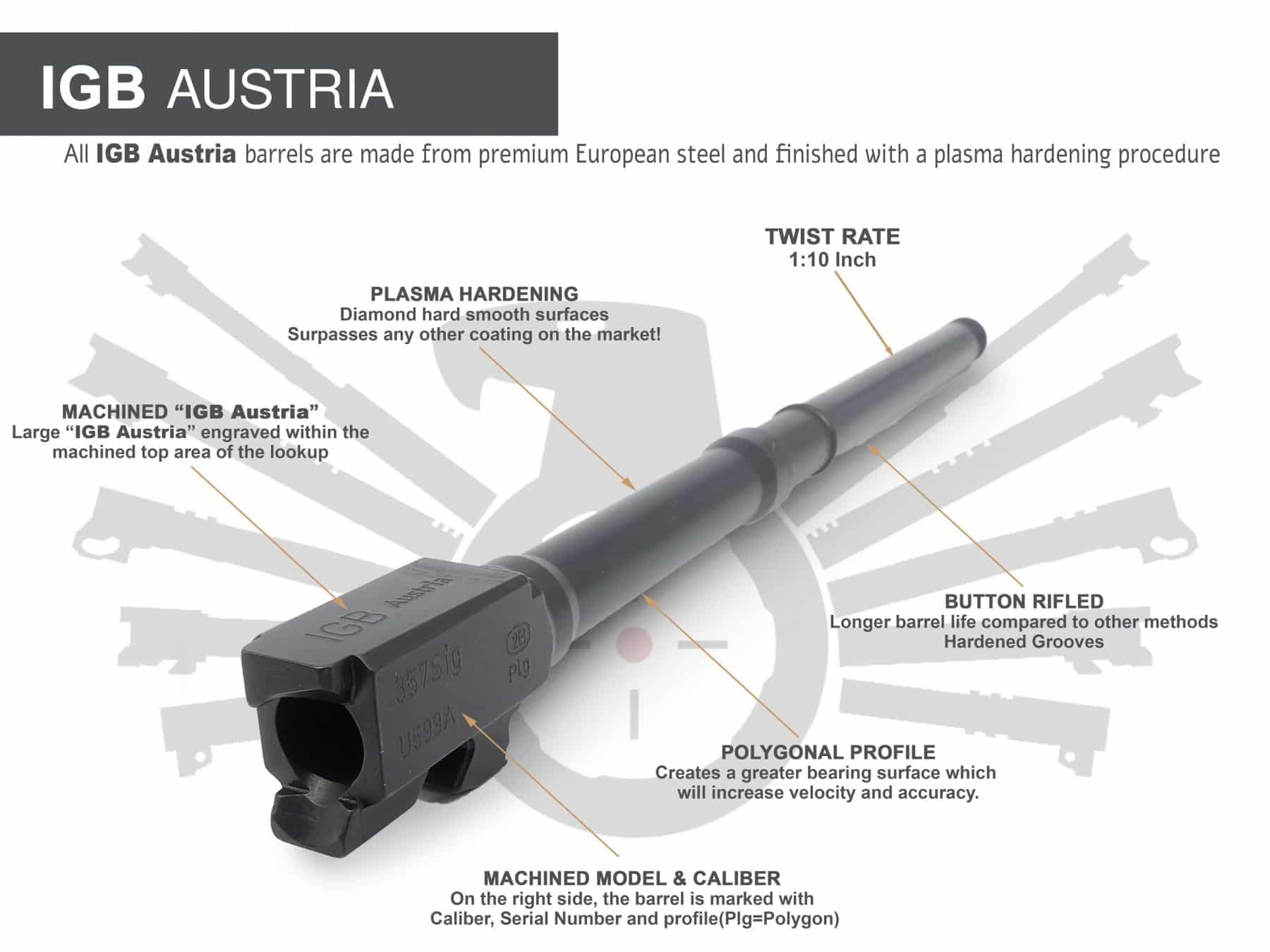

IGB barrel profile - hexagonal: polygonal
IGB Austria with its in-house blank production combines both of two worlds. The conventional field-groove profile is used for best control of bullets or lead bullets. If you have a closer look at the profile you find the angle between groove-to-field to be similar to a polygon (60°) with slightly rounded edges. For this reason, IGB barrels are having a longer lifetime and are more cleaning friendly than others.
Cold Forged Steel
Unsurpassed density. Hard on the surface, "soft" inside. The parameters of a barrel to be hard/viscous and flexible are not exempting each other, but are combined in IGB Austria Barrel Production. IGB Austria forces the tool through the barrel with tons of pressure. The result is a precise, mirror polished barrel with great vibration characteristic and durability.
Plasma Hardening Procedure
Barrels, made by IGB Austria get treated the modern way of Hardening - the Plasmanitration. Diamond hard smooth surfaces without the known weaknesses of the tenifer process (loss of material flakes on the inner surface). Plasmanitration delivers characteristically a very dark grey surface, is corrosion resistant and comes close to diamond hardness.
IGB Austria works with special in-house adapted machinery to ensure best quality and precision. IGB Barrel - even if they are sold as drop-in will always go to the edge of best fitting. Tolerances are kept tight and optimized for shooters needs.
Polygonal or wavy rifling has more shallow channels than traditional (Lands-and-Grooves) rifling. This allows the least amount of gas to escape around the bullet leaving the barrel. It also creates a greater bearing surface which will increase velocity and accuracy. It's extremely important when shooting through a window/doors or other hard surfaces.
Several advantages for Polygonal Rifling:
Glocks Generation 5
M13x1R, M13x1, L M13.5x1L, M14x1R, M14x1, L M15x1R, M15x1L, M16x1R, M16x1L
