Effortlessly shrugging off recoil, moisture, and darkness! The Viper's status as a premium riflescope won't be as easy to shake. Discover a riflescope with incredible performance features like premium, fully multi-coated optics, heavy duty Precision Force spring systems and the glass smooth Precision Glide erector system—delivering all this and more at a price that should have pulled a few more hundreds from your wallet than it did.
$571.95
Effortlessly shrugging off recoil, moisture, and darkness! The Viper's status as a premium riflescope won't be as easy to shake. Discover a riflescope with incredible performance features like premium, fully multi-coated optics, heavy duty Precision Force spring systems and the glass smooth Precision Glide erector system—delivering all this and more at a price that should have pulled a few more hundreds from your wallet than it did.
Optical Features |
|
XD Lens Elements | Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images. |
XR Fully Multi-Coated | Proprietary coatings increases light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at a magnification of 14x. |
Construction features |
|
Tube Size | 30 mm diameter. |
Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
Waterproof | O-ring seals prevent moisture, dust, and debris from penetrating the riflescope for reliable performance in all environments. |
Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
Shockproof | Rugged construction withstands recoil and impact. |
Hard Anodized Finish | Highly durable low-glare matte finish helps camouflage the shooter's position. |
ArmorTek | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil, and dirt. |

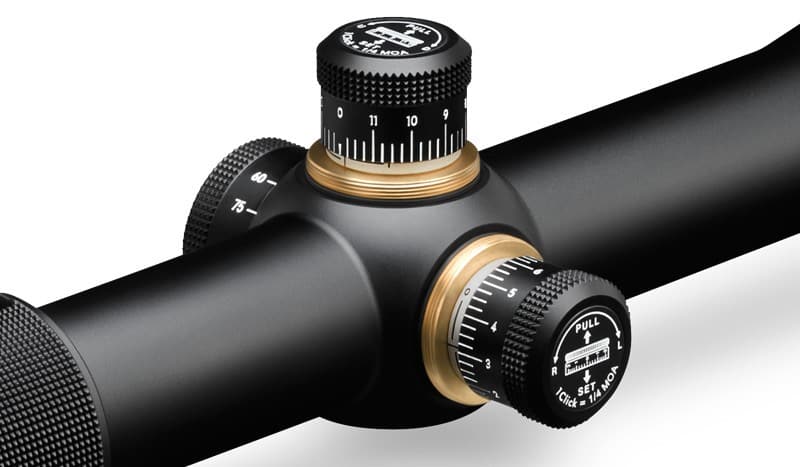

Capped Reset Turrets | Allow quick re-indexing of the turret (no tool needed) to zero after sighting in the riflescope. Caps provide external protection for the turret. |
Side Focus | Adjustment located on riflescope's left side and is easily accessible from shooting position. Provides optimal image focus and parallax removal. |
Internal mechanism design features |
|
Precision-Force Spring System | Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment. |
Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
Convenience features |
|

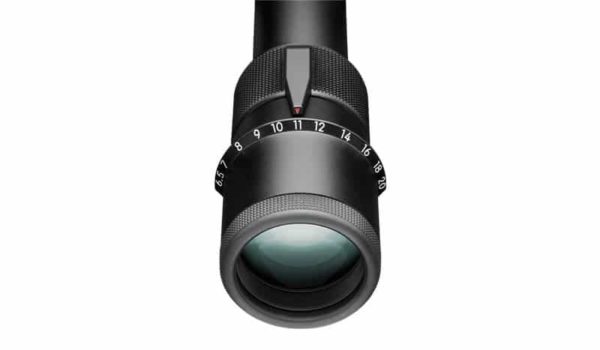

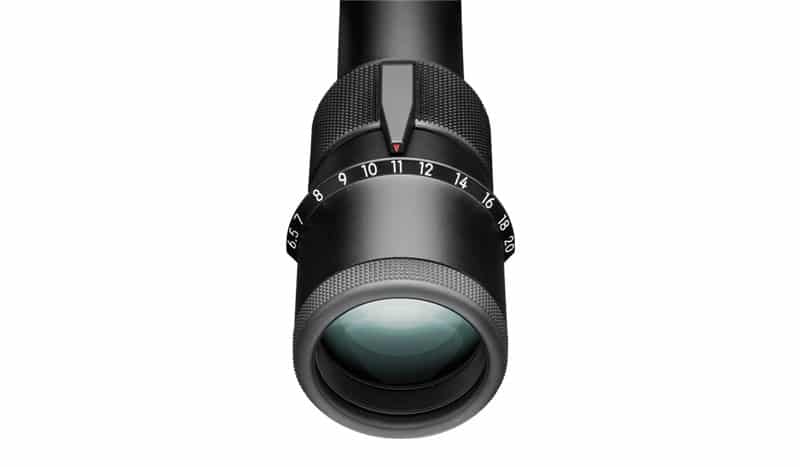

MAG-Bar | Allows rapid, easy changes in magnification. |
Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
Magnification | 6.5-20 x |
Objective Lens Diameter | 50 mm |
Eye Relief | 3.1 inches |
Field of View | 17.4-6.2 feet/100 yards |
Tube Size | 30 mm |
Turret Style | Tall capped |
Adjustment Graduation | 1/4 MOA |
Travel per Rotation | 12 MOA |
Max Elevation Adjustment | 65 MOA |
Max Windage Adjustment | 65 MOA |
Parallax Setting | 50 yards to Infinity |
Length | 14.4 inches |
Weight | 21.6 ounces |
Product Manual (PDF) | Download |
Product Manual 2 (PDF) | Download |
Dimensions:
LENGTHS | |||||
L1 | L2 | L3 | L4 | L5 | L6 |
14.4 | 2.8 | 2.2 | 6.4 | 4.7 | 3.2 |
HEIGHTS | |
H1 | H2 |
2.27 | 1.72 |
* Dimensions measured in inches.

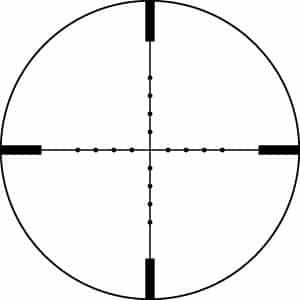

MIL-DOT Reticle:
Originating from the US Marine Corps., this reticle is useful for helping to estimate range, windage and bullet hold-over. Good for long distance shooters/hunters needing ranging ability.
Subtension detail for the Viper 6.5-20x50 Mil-Dot Reticle. >
Note:
Read the Mil-Dot Reticle manual for details on using the reticle for ranging, windage compensation, and estimating proper holdover on longer shots.
