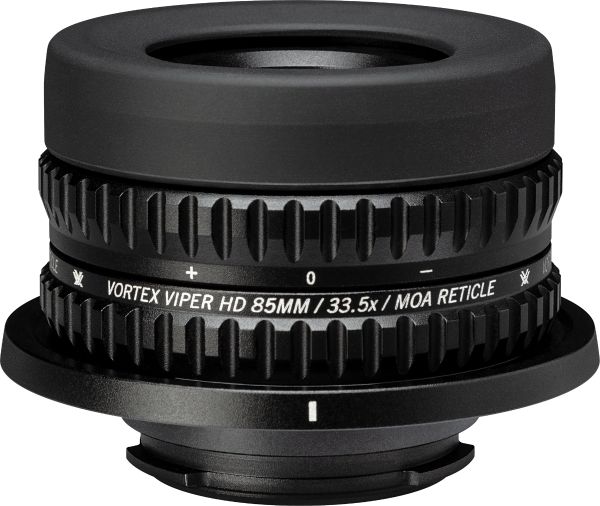

Vortex Optics VIPER® HD RETICLE EYEPIECE - Ranging (MOA) Reticle (VS-85REA)
Vortex Optics VIPER® HD RETICLE EYEPIECE – Ranging (MOA) Reticle (VS-85REA)
Details & Specs

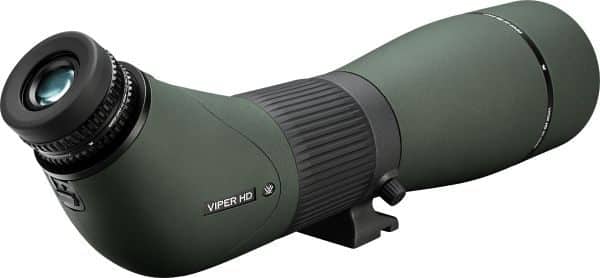

Want to be a better shot caller? Put a Viper Reticle Eyepiece on your Viper HD 85mm spotting scope and it becomes the perfect optical measuring stick for making spotter-to-shooter communication fast and easy. A fixed magnification of 33.5x gives you all the power you need, and a diopter ring and the ability to rotate the reticle to level it with the horizon line lets you customize your view.
Note: This eyepiece is specifically designed for use with the latest generation Viper HD 85mm spotting scopes – it is not compatible with the 65mm Viper HD models.
|Linear Field of View (85mm)||101 feet @ 1000 yards|
|Angular Field of View (85mm)||1.93 degrees @ 1000 yards|
|Eye Relief||18 mm|
VS-85REA Included In the Box:
- Lens cover
- Microfiber cleaning/carry pouch
Ranging (MOA) RETICLE:
Hashmarked ranging reticle using MOA-based subtension lines for ranging, holdover, and windage corrections. Secondary ranging references facilitate rapid range estimating.
