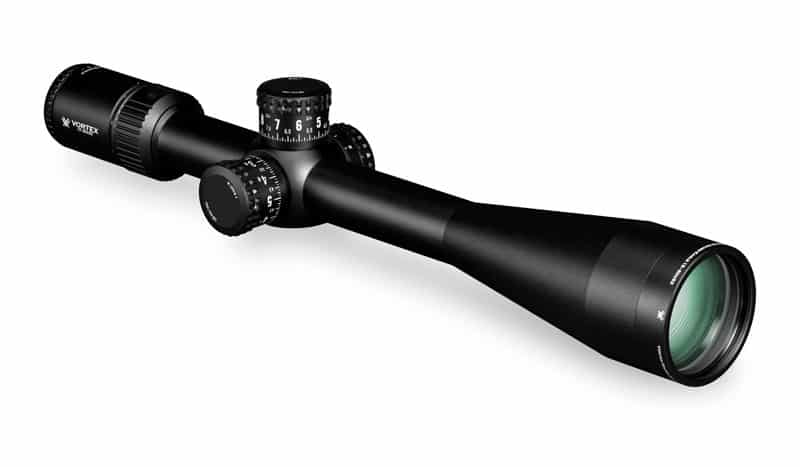

TCS-1503 Vortex Optics Golden Eagle® HD 15-60X52 ECR-1(MOA) Riflescope

SKU: TCS-1503 Category:

Competitive shooters require a very specific set of features to stay ahead of the competition, and The Golden Eagle hits the mark (pun intended). The 15-60x magnification, fine reticle, and positive and repeatable tracking are perfect for fine tuning that record shot.

Price:

$1,649.99

Out of stock

Description
Specifications

Competitive shooters require a very specific set of features to stay ahead of the competition, and The Golden Eagle hits the mark (pun intended). The 15-60x magnification, fine reticle, and positive and repeatable tracking are perfect for fine tuning that record shot. Plus, its relatively light weight—29.5 oz.—allows shooters to adhere to strict competition weight limits.

Whether you’re interested in Rimfire Bench Rest, Centerfire Bench Rest, NRA High-Power or F-Class competitions, this is the scope for you.

Specifications:

Magnification 15-60 x
Objective Lens Diameter 52 mm
Eye Relief 3.9
Field of View 6.3-1.7 feet/100 yards
Tube Size 30 mm
Turret Style Target
Adjustment Graduation 1/8 MOA
Travel per Rotation 10 MOA
Max Elevation Adjustment 55 MOA
Max Windage Adjustment 45 MOA
Parallax Setting 20 to Infinity
Length 16.1 inches
Weight 29.7 oz
Product Manual (PDF) Download
Product Manual 2 (PDF) Download



Optical Features:

APO System Apochromatic objective lens system uses index-matched lenses to correct color across the entire visual spectrum.
Optically Indexed Lenses Optimize image sharpness and brightness from edge to edge.
HD Lens Elements Premium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images.
XR™Plus Fully Multi-Coated Premium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness.
Plasma Tech Cutting edge application process provides unparalleled coating durability and performance.
Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at 40x magnification.



Constructions Features:

Tube Size 30 mm diameter provides maximized internal adjustment and strength while maintaining light weight.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
ArmorTek Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.
Side Focus Adjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.



Internal Mechanism Design Features:

Extra-Fine Resolution Turret The resolute increment of adjustment of just 0.125 MOA per click allows competitive shooters to make very small adjustments to fine tune their shots.

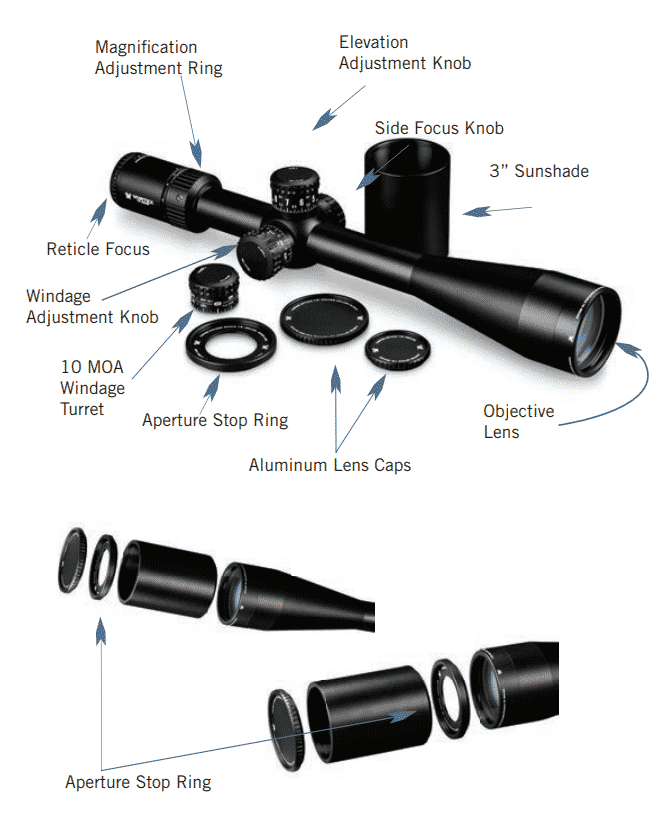

Convenience Features:

Fast Focus Eyepiece Allows quick and easy reticle focusing.

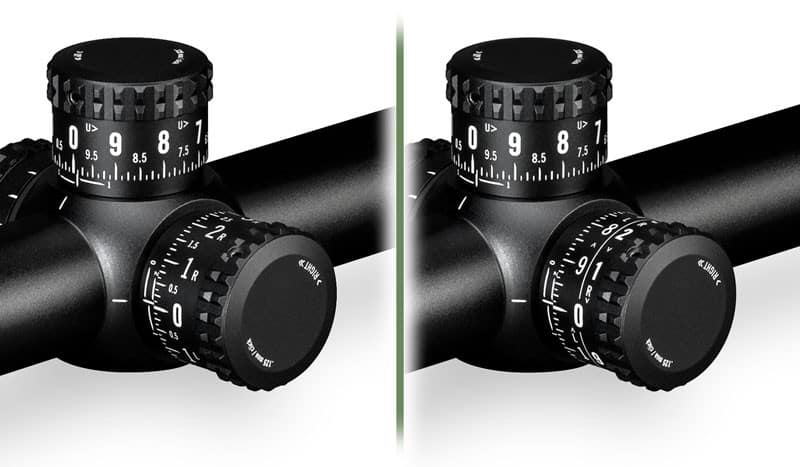

Optional 10 MOA Windage Turret Included accessory turret allows for dialing a full 10 MOA revolution of windage before the scale repeats.
ASR (Aperture Stop Ring) Broadens the depth of focus allowing the shooter to more easily observe down range mirage and other wind indicators while keeping the target in focus.
Aluminum Lens Caps Premium aluminum screw on eyepiece and objective lens covers included.

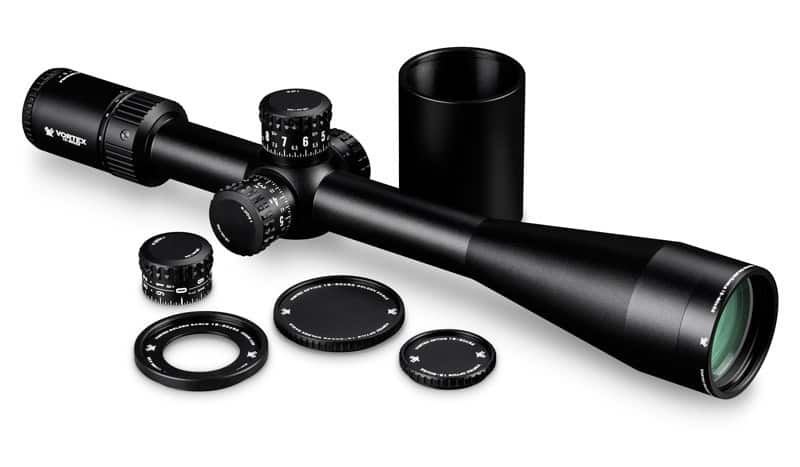

Included In The Box:

  • Lens Cloth
  • 2mm Hex Wrench
  • 35mm ASR (Aperture Stop Ring)
  • Extra Windage Turret with alternative laser markings
  • Aluminum Objective and Eyepiece Lens Covers
  • 3" Sunshade
  • VIP Unconditional Lifetime Warranty

Dimensions:

TCS-1503 Vortex Optics Golden Eagle® HD 15-60X52 ECR-1(MOA) Riflescope 14

LENGTHS
L1 L2 L3 L4 L5 L6
16.1 3.5 2.25 7.5 6.4 3.2



HEIGHTS
H1 H2
2.4 1.73

Dimensions measured in inches.

TCS-1503 Vortex Optics Golden Eagle® HD 15-60X52 ECR-1(MOA) Riflescope 15

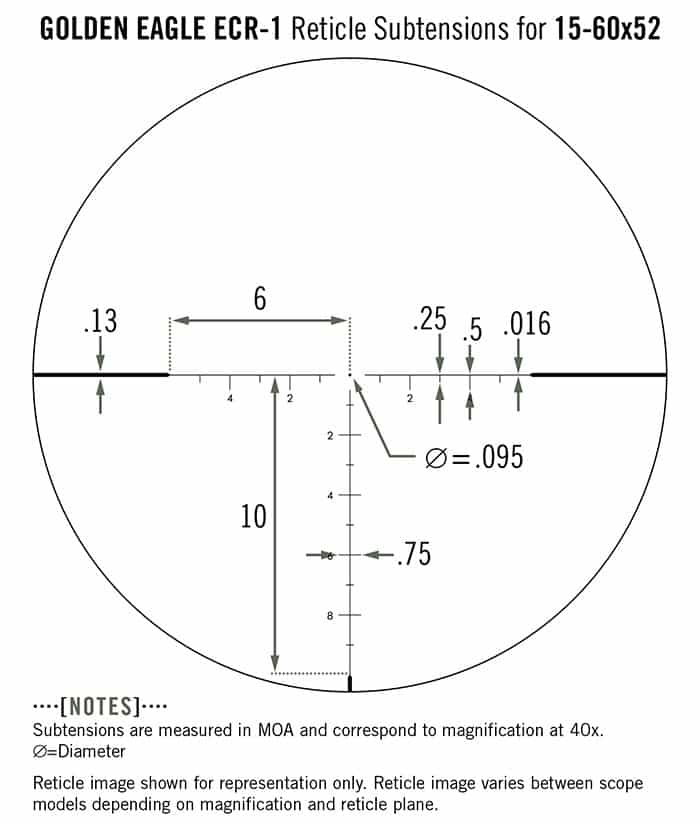

ECR-1 RETICLE (MOA)

The ECR-1(Enhanced Crosshair Reticle) ) is a hash marked reticle using moa based subtension lines for holdover, and windage corrections. The floating center dot subtends 0.095 MOA at 40X.

Subtension detail for Golden Eagle HD riflescope with ECR-1 MOA reticle.

NOTE:
Read the manual for details on how to effectively determine range, holdover, windage and moving lead corrections.

Suggested Mounts:

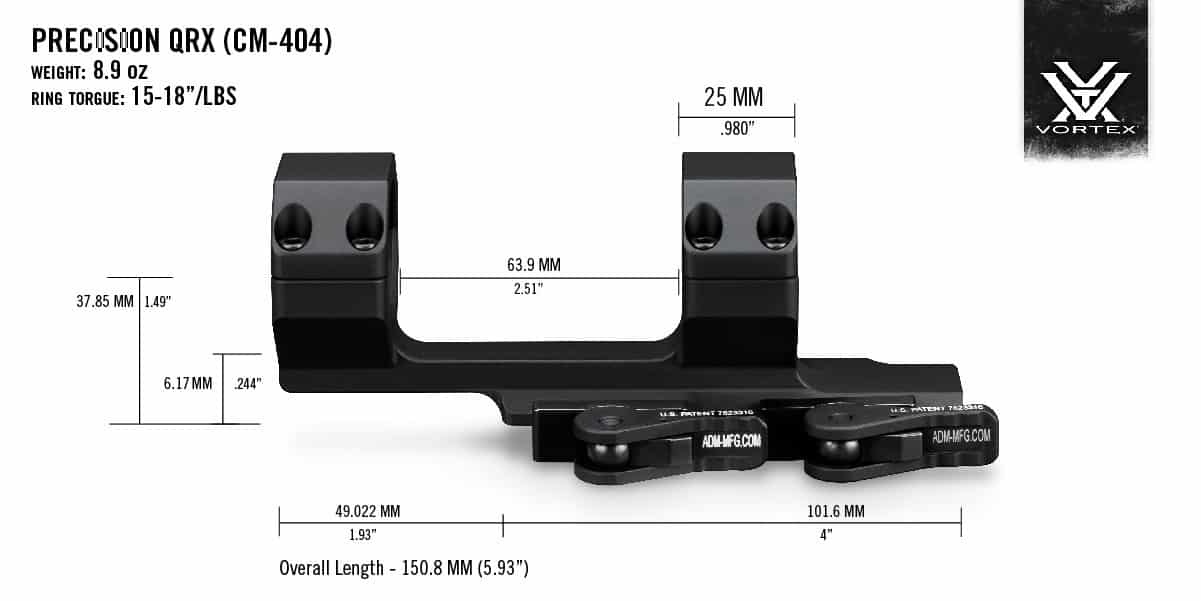

CM 404 - Precision QR Cantilever Mount 30mm 2" offset

TCS-1503 Vortex Optics Golden Eagle® HD 15-60X52 ECR-1(MOA) Riflescope 16

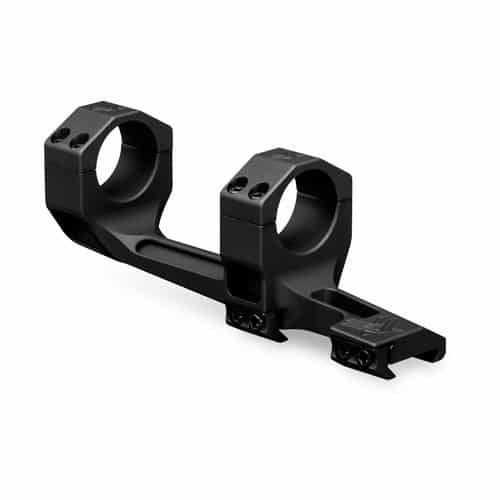

CM 530 - Precision QR Extended Cantilever 30mm mount

TCS-1503 Vortex Optics Golden Eagle® HD 15-60X52 ECR-1(MOA) Riflescope 17

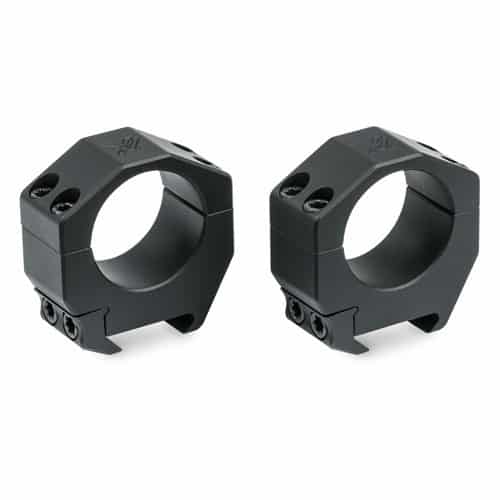

PMR 30 97 - Precision Matched Rings (Set of 2) for 30 mm (.97 Inch / 24.64 mm)

TCS-1503 Vortex Optics Golden Eagle® HD 15-60X52 ECR-1(MOA) Riflescope 18

Optimal Add-Ons:

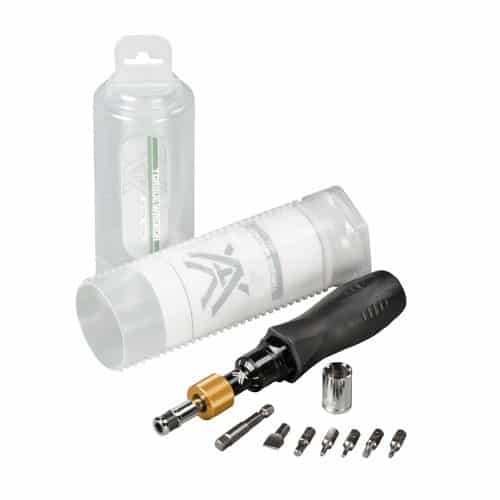

CTW - Torque Wrench Mounting Kit

TCS-1503 Vortex Optics Golden Eagle® HD 15-60X52 ECR-1(MOA) Riflescope 19

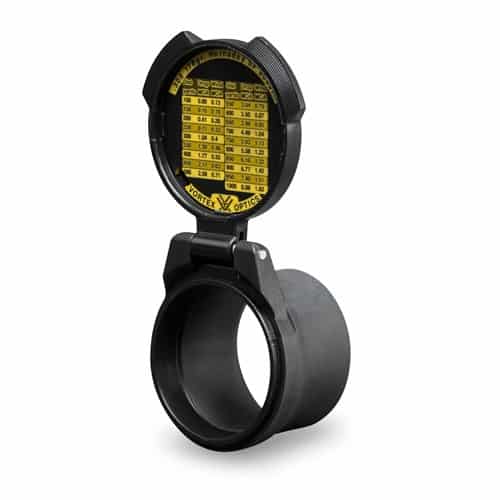

E 10 - Defender Flip Cap Eyepiece (40-46 mm)

TCS-1503 Vortex Optics Golden Eagle® HD 15-60X52 ECR-1(MOA) Riflescope 20

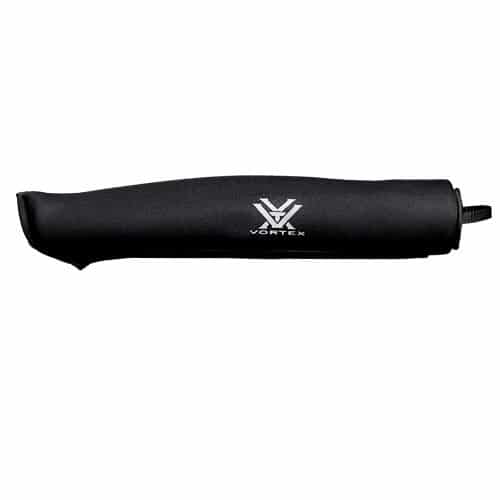

SF XL - Sure Fit Riflescope Cover X-Large

TCS-1503 Vortex Optics Golden Eagle® HD 15-60X52 ECR-1(MOA) Riflescope 21

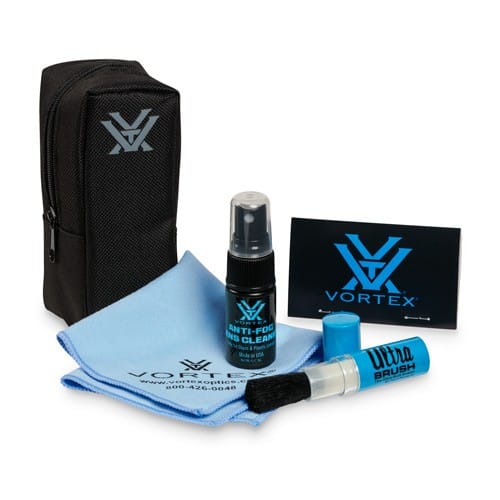

LC 1 - Fog Free Lens Cleaning Field Kit

TCS-1503 Vortex Optics Golden Eagle® HD 15-60X52 ECR-1(MOA) Riflescope 22
