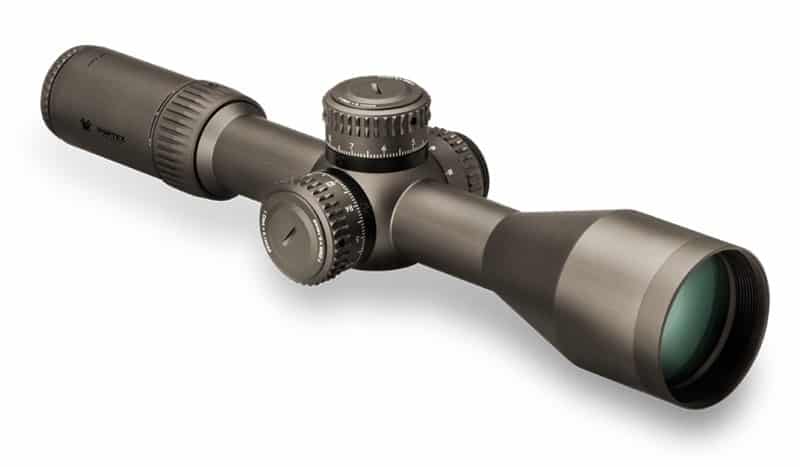

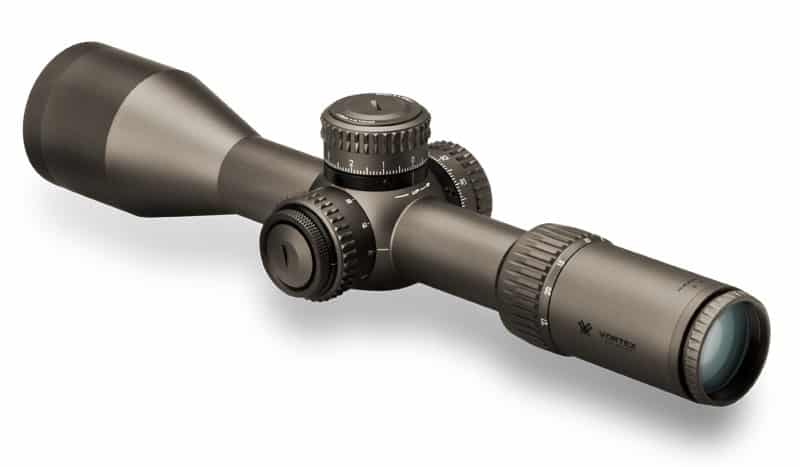

RZR-42704 Vortex Optics Razor HD Gen II 4.5-27×56 Riflescope with EBR-1C Reticle (MRAD)

RZR-42704 Vortex Optics Razor HD Gen II 4.5-27x56 Riflescope with EBR-1C Reticle (MRAD)

RZR-42704 Vortex Optics Razor HD Gen II 4.5-27x56 Riflescope with EBR-1C Reticle (MRAD)

RZR-42704 Vortex Optics Razor HD Gen II 4.5-27×56 Riflescope with EBR-1C Reticle (MRAD)

IN STOCK
Original price $2,749.95
ZFI Club Register for 10% discount

$2,749.95

RZR-42704 Vortex Optics Razor HD Gen II 4.5-27×56 Riflescope with EBR-1C Reticle (MRAD)

Availability: In stock SKU: RZR-42704

Description

Description

The new frontrunners in the race for the ultimate precision, long-range optics have serious precision shooters saying “finally.” The Gen II Razors are designed and engineered for dialing precision long-range shots in extreme environments. They feature a 6x zoom range, a 34 mm single-piece aircraft-grade aluminum tube and our sophisticated L-Tec turret system, plus a host of additional high-performance features for state-of-the-art optics with deadly accuracy.

Features:

Optical Features:

APO SystemApochromatic objective lens system uses index-matched lenses to correct color across the entire visual spectrum.
Optically Indexed LensesOptimize image sharpness and brightness from edge to edge.
HD Lens ElementsPremium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images.
XRPlus Fully Multi-CoatedPremium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness.
Plasma TechCutting edge application process provides unparalleled coating durability and performance.
First Focal Plane ReticleScale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-etched ReticleAllows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
Illuminated ReticleProvides precise aiming under low-light conditions.

Construction Features:

Tube Size34 mm diameter provides maximized internal adjustment and strength.
Single-Piece TubeMaximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade AluminumConstructed from a solid block of aircraft-grade aluminum for strength and rigidity.
WaterproofO-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
FogproofArgon gas purging prevents internal fogging over a wide range of temperatures.
ShockproofRugged construction withstands recoil and impact.
Hard Anodized Stealth Shadow FinishHighly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter’s position.
ArmorTekUltra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

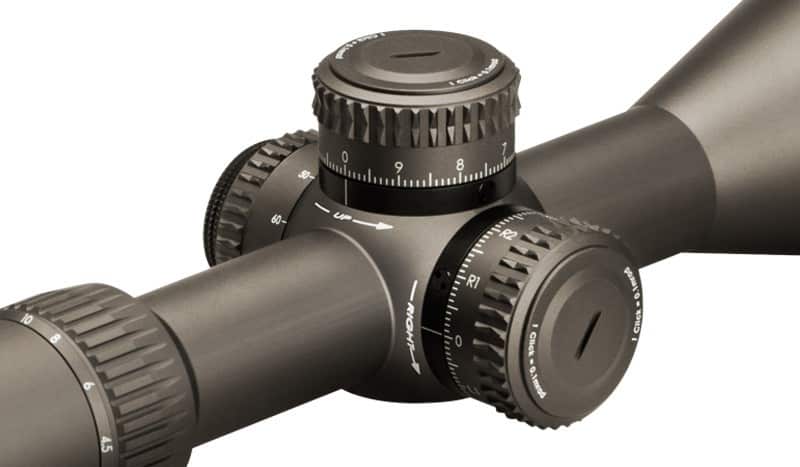

L-Tec TurretsIntegrated locking mechanism prevents accidental adjustments. Turrets provide fast, accurate, easily read elevation and windage adjustments. Patent pending.
External Rotation IndicatorProvides quick visual and tactile reference of elevation turret’s rotational position.
Locking IlluminationLocks illumination at preferred setting.
Side FocusAdjustment located on left side of turret housing is easily accessible from shooting position. Provides optimal image focus and parallax removal.

Internal Mechanism Design Features:

L-Tec Zero StopPrevents elevation turret from dialing below sight in range using rugged steel components. Internal mechanisms stay free of sand, dirt, dust, moisture and other foreign materials—even when setting the zero-stop position. Patent pending.
Micro Adjust Zero SettingInfinite zero setting positions allow zero to be set between clicks for optimal accuracy.
Friction Reduction SystemHeat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability.US Patent 7,958,665
Turret ScrewsProvides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch). Ultra-smooth operation and adjustments.
Erector Tube SystemPrecision-machined from premium brass alloy with anti-galling properties for strength and durability. The chromium vanadium erector spring withstands compression, has high fatigue resistance and is tumble-polished to a mirror finish for micro-precise elevation and windage adjustments.

Convenience Features:

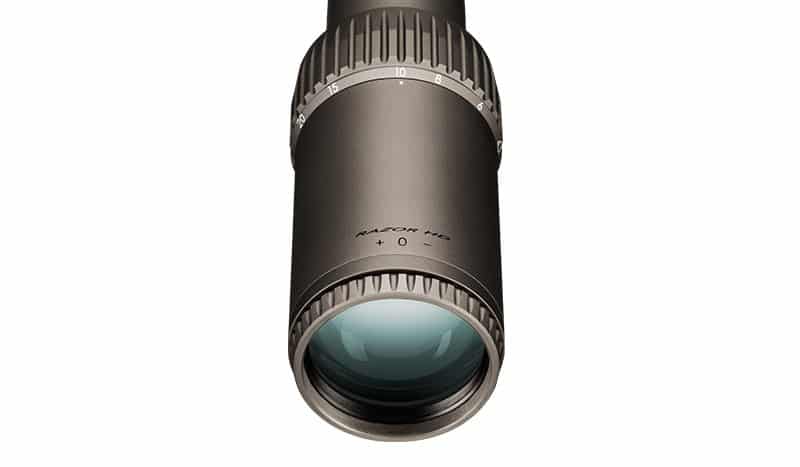

Fast Focus EyepieceAllows quick and easy reticle focusing.
Locking Side IlluminationEasily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.

Specifications:

Magnification4.5-27 x
Objective Lens Diameter56 mm
Eye Relief3.7 inches
Field of View25.3-4.4 feet/100 yards
Tube Size34 mm
Turret StyleL-Tec
Adjustment Graduation.1 MRAD
Travel per Rotation10 MRAD
Max Elevation Adjustment33 MRAD
Max Windage Adjustment14 MRAD
Parallax Setting32 yards to infinity
Length14.4 inches
Weight48.5 ounces

Included In the Box:



  • L-Tec Tool
  • 4-inch sunshade
  • 2mm hex wrench
  • CR2032 battery
  • Lens cloth



Dimensions:

RZR-42704 Vortex Optics Razor HD Gen II 4.5-27x56 Riflescope with EBR-1C Reticle (MRAD) 1

LENGTHS
L1L2L3L4L5L6
14.42.02.26.14.14.1



HEIGHTS
H1H2
2.551.81

* Dimensions measured in inches.

Reticle:

RZR-42704 Vortex Optics Razor HD Gen II 4.5-27x56 Riflescope with EBR-1C Reticle (MRAD) 2
EBR-1C RETICLE (MRAD)
The EBR-1C is a hashmarked ranging reticle using MRAD-based subtension lines for ranging, holdover and windage corrections.

Subtension detail for the Razor HD Gen II 4.5-27×56 riflescope with RBR-1C reticle. >

Note

Read the Razor HD Gen II 4.5-27×56 EBR-1C MRAD Reticle manual for details on how to effectively determine range, holdover, windage and moving lead corrections.
