RZR-16005 Vortex Optics Razor HD Gen 2 1-6x24 Riflescope with VMR-2 Reticle

RZR-16005 Vortex Optics Razor HD Gen 2 1-6x24 Riflescope with VMR-2 Reticle

RZR-16005 Vortex Optics Razor HD Gen 2 1-6×24 Riflescope with VMR-2 Reticle

OUT OF STOCK
Original price $1,539.95
ZFI Club Register for 10% discount

$1,539.95

RZR-16005 Vortex Optics Razor HD Gen 2 1-6×24 Riflescope with VMR-2 Reticle

Availability: Out of stock SKU: RZR-16005

Description

Description

Every component, feature and performance characteristic of this riflescope is so well thought out and executed, it’s almost scary. Incredibly versatile and perfect for the AR platform, the Vortex Razor HD Gen II 1-6×24 is the ideal optical solution for short to medium-range tactical applications requiring the pinnacle of optical performance.

Optically, the Razor HD Gen II 1-6×24 delivers the highest level of clarity, resolution, color accuracy, light transmission and edge to edge sharpness obtainable. The ultra-forgiving eye box with generous eye relief generates a heads-up display-like sight picture for fast target acquisition and optimal dual-eye visual monitoring of the surrounding environment. Ultra sleek and built like a tank on a 30 mm aircraft-grade aluminum tube, the Razor HD Gen II 1-6×24 features ultra-low profile, capped windage and elevation turrets for streamlined performance. Zero-resettable turrets offer 50 MOA of adjustment in a single turn—ensuring ample travel.

Features:

Optical Features:

APO SystemApochromatic objective lens system uses index-matched lenses to correct color across the entire visual spectrum.
Optically Indexed LensesOptimize image sharpness and brightness from edge to edge.
HD Lens ElementsPremium HD (High Density) extra-low dispersion glass delivers the ultimate in resolution and color fidelity, resulting in High Definition images.
XRPlus Fully Multi-CoatedPremium proprietary coatings deliver the highest level of light transmission with multiple anti-reflective coatings on all air-to-glass surfaces for maximum brightness.
Plasma Techtting edge application process provides unparalleled coating durability and performance.
Second Focal Plane ReticleScale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Illuminated Center DotDaylight bright illuminated center dot provides a precise point-of-aim in all lighting conditions.
Locking IlluminationLocks illumination at preferred setting.



Construction Features

Tube Size30 mm diameter tube offers a versatile blend of adjustment, size and weight for a wide variety of shooting applications.
Single-Piece TubeMaximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade AluminumConstructed from a solid block of aircraft-grade aluminum for strength and rigidity.
WaterproofO-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
FogproofArgon gas purging prevents internal fogging over a wide range of temperatures.
ShockproofRugged construction withstands recoil and impact.
Hard Anodized FinishHighly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter’s position.
ArmorTekUltra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

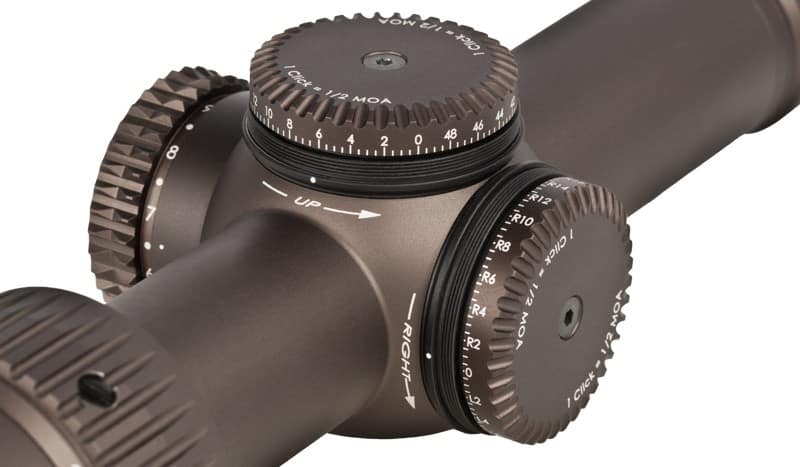

Large Diameter TurretsProvide fast, accurate and easily read elevation and windage adjustments. Caps provide external protection for turret.



Internal Mechanism Design Features:

Friction Reduction SystemHeat-treated, hardened-steel pad floats on the end of the turret screw and interfaces with a hardened steel ring on the erector tube for steel-on-steel contact. Prevents galling or deformation of the erector screw contact point for superior durability and repeatability.US Patent 7,958,665
Turret ScrewsProvides low-friction, wear-resistant performance: precision-machined from a silicon-brass alloy and treated with an advanced dry-film lubricant. Turret screw threads are precision machined to sub-2 micron tolerances (less than 78-millionths of an inch). Ultra-smooth operation and adjustments.
Erector Tube SystemPrecision-machined from premium brass alloy with anti-galling properties for strength and durability. The chromium vanadium erector spring withstands compression, has high fatigue resistance and is tumble-polished to a mirror finish for micro-precise elevation and windage adjustments.



Convinience Features:

Fast Focus EyepieceAllows quick and easy reticle focusing.
Locking Side IlluminationEasily accessible and lockable illumination dial is located on the left side of turret housing. Features eleven intensity levels of illumination with off positions between each setting.

Specifications:

Magnification1-6 x
Objective Lens Diameter24 mm
Eye Relief4.0 inches
Field of View115.2-20.5 feet/100 yards
Tube Size30 mm
Turret StyleLow Capped
Adjustment Graduation1/2 MOA
Travel per Rotation50 MOA
Max Elevation Adjustment150 MOA
Max Windage Adjustment150 MOA
Parallax Setting100 yards
Length10.1 inches
Weight25.2 ounces
Product Manual (PDF)Download
Product Manual 2 (PDF)Download



Dimensions:

LENGTHS
L1L2L3L4L5L6
10.12.81.55.90.63.6



HEIGHTS
H1H2
1.291.81

* Dimensions measured in inches.

Reticle:

RZR-16005 Vortex Optics Razor HD Gen 2 1-6x24 Riflescope with VMR-2 Reticle 1

VMR-2 RETICLE (MOA)
The VMR-2 is a hashmarked ranging reticle with an illuminated center dot that uses MOA-based subtension lines for ranging, holdover and windage corrections.

Subtension detail for the Razor HD Gen II riflescope VMR-2 MOA reticle. >

Note

Read the Razor HD Gen II VMR-2 MOA Reticle manual for details on how to effectively determine range, holdover, windage and moving lead corrections.
