PST-416F1-A Vortex Optics VIPER PST 4-16x50 First Focal Plane Rifle Scope with EBR-1 (MOA) Reticle

SKU: PST-416F1-A Category:

PST-416F1-A Vortex Optics VIPER PST 4-16x50 First Focal Plane Rifle Scope with EBR-1 (MOA) Reticle

Price:

$1,209.95

Out of stock

Description
Specifications

The Viper PST (Precision Shooting Tactical) riflescope boasts features associated with top-tier riflescopes, yet comes in at a street price under the $1,000 mark. Matching reticle and turret measurements allow accurate, fast dialing of shots. The one-piece 30mm tube, precision-machined from a single solid block of aircraft-grade 6061-T6 aluminum, offers ample windage and elevation adjustment. Born from an intimate understanding of riflescope design, forward-thinking engineering, and open ears to a market incredibly vocal about what it wants in a riflescope, the Viper PST series delivers the performance and features tactical shooters demand at an economical price.

Features:

Optical Features:

XD Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
XR Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
First Focal Plane Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
Glass-etched Reticle Protected between two layers of glass for optimum durability and reliability.
Illuminated Reticle Provides precise aiming under low-light conditions.

Construction Features:

Tube Size 30 mm diameter.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard Anodized Finish Highly durable low-glare matte finish helps camouflage the shooter's position.
ArmorTek Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.

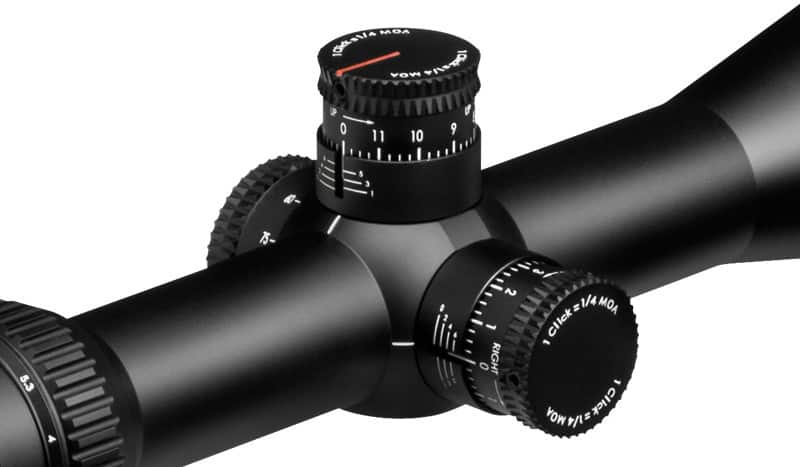

Tactical-Style Turrets Exposed turrets provide fast, accurate and easily read elevation and windage adjustments.
Side Focus Adjustment located on riflescope's left side and is easily accessible from shooting position. Provides optimal image focus and parallax removal.

Internal Mechanism Design Features:

CRS Zero Stop Customizable Rotational Stop (CRS) aids in return to zero after dialing temporary elevation correction.
Precision-Force Spring System Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
Precision-Glide Erector System Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.

Convenience Features:

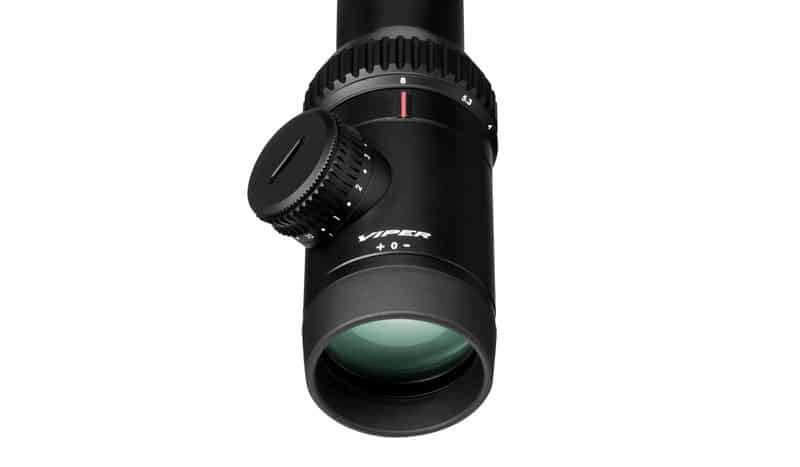

MAG-View Fiber Optic Provides a highly visible reference point for the magnification setting.
Radius Bar Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations. US Patent 7,937,879
Fast Focus Eyepiece Allows quick and easy reticle focusing.

Specifications:

Magnification 4-16 x
Objective Lens Diameter 50 mm
Eye Relief 4.0 inches
Field of View 27.4-7.4 feet/100 yards
Tube Size 30 mm
Turret Style Tactical
CRS Zero Stop
Adjustment Graduation 1/4 MOA
Travel per Rotation 12 MOA
Max Elevation Adjustment 75 MOA
Max Windage Adjustment 75 MOA
Parallax Setting 50 yards to Infinity
Length 13.7 inches
Weight 22.4 ounces
Product Manual (PDF) Download
Product Manual 2 (PDF) Download

Included In the Box:

  • 4-inch sunshade
  • CR2032 battery
  • CRS shims
  • Lens cloth
  • VIP Unconditionl Lifetime Warranty

Dimensions:

PST-416F1-A Vortex Optics VIPER PST 4-16x50 First Focal Plane Rifle Scope with EBR-1 (MOA) Reticle 6

LENGTHS
L1 L2 L3 L4 L5 L6
13.7 2.1 2.2 5.6 4.2 3.6



HEIGHTS
H1 H2
2.26 1.63

* Dimensions measured in inches.

Reticle:

PST-416F1-A Vortex Optics VIPER PST 4-16x50 First Focal Plane Rifle Scope with EBR-1 (MOA) Reticle 7

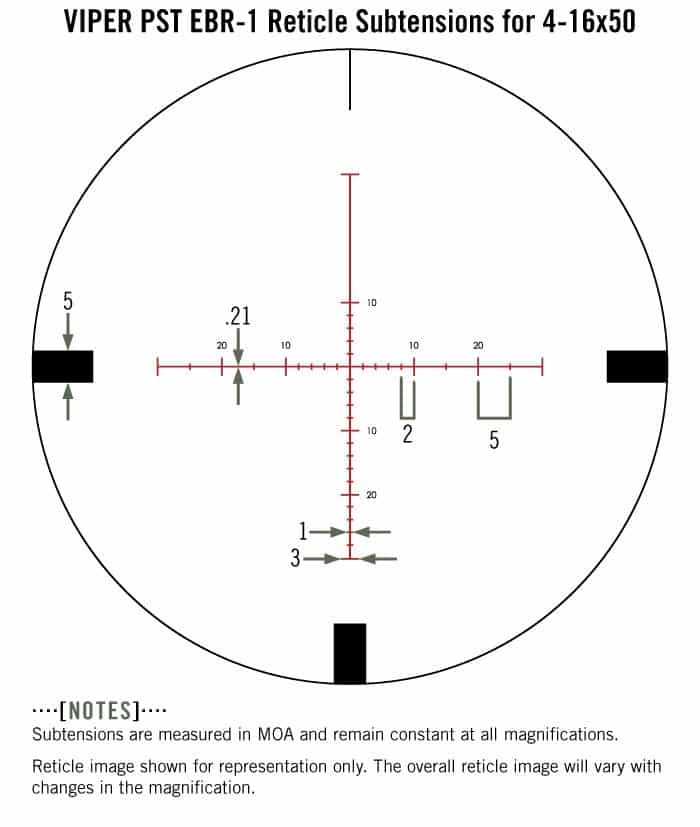

EBR-1 RETICLE (MOA)
The EBR-1 (Enhanced Battle Reticle) is a hashmarked ranging reticle using MOA based subtension lines for ranging, holdover, and windage corrections. First focal plane reticle.

Subtension detail for the Viper PST 4-16x50 FFP riflescope with EBR-1 MOA reticle.>

Note

Read the Viper PST 4-16x50 FFP Riflescope with EBR-1 MOA Reticle manual for details on how to effectively determine range, holdover, windage and moving lead corrections.
