PST-1607 Vortex Optics Viper PST Gen II 1-6x24 Riflescope with VMR-2 Reticle (MRAD) - Slightly Used

SKU: PST-1607-used Categories: ,

This updated favorite hands an unfair advantage to shooters who seek to keep the upper hand in every situation from close quarters to long-range shots. The illumination dial is cleanly integrated into the side focus adjustment knob for easy access and streamlined performance. The reticle offers shooters highly functional, intuitive, and detailed hold points, yet remains uncluttered for optimal viewing and features 10 intensity levels with off positions between each setting.

Price:

$411.95

Out of stock

Description
Specifications

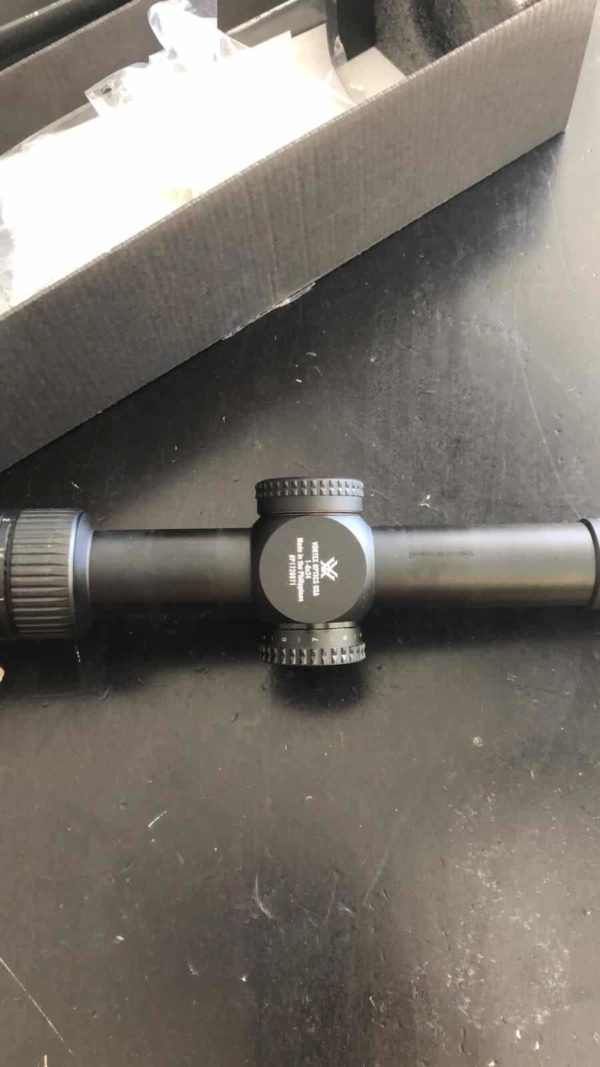

There are some scratches on the product but the product has been tested and is good to use. The warranty is still valid for life!

This updated favorite hands an unfair advantage to shooters who seek to keep the upper hand in every situation from close quarters to long-range shots. The illumination dial is cleanly integrated into the side focus adjustment knob for easy access and streamlined performance. The reticle offers shooters highly functional, intuitive, and detailed hold points, yet remains uncluttered for optimal viewing and features 10 intensity levels with off positions between each setting.

Specifications:

Magnification 1-6 x
Objective Lens Diameter 24 mm
Eye Relief 3.8 in
Field of View 112.5-18.8 feet/100 yards
Tube Size 30 mm
Turret Style Capped
Adjustment Graduation .2 MRAD
Travel per Rotation 20 MRAD
Max Elevation Adjustment 46 MRAD
Max Windage Adjustment 46 MRAD
Parallax Setting 100 yards
Length 10.9 inches
Weight 22.7 ounces
Product Manual (PDF) Download
Product Manual 2 (PDF) Download



Optical Features:

XDâ„¢ Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
XRâ„¢ Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
Second Focal Plane Reticle Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification.
Illuminated Reticle Provides precise aiming under low-light conditions.



Constructions Features:

Tube Size 30 mm diameter.
Single-Piece Tube Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness.
Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
Waterproof O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments.
Fogproof Argon gas purging prevents internal fogging over a wide range of temperatures.
Shockproof Rugged construction withstands recoil and impact.
Hard Anodized Finish Highly durable low-glare matte finish helps camouflage the shooter's position.
ArmorTek Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt.



Internal Mechanism Design Features:

Precision-Force Spring System Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment.
Precision-Glide Erector System Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions.



Convenience Features:

Fast Focus Eyepiece Allows quick and easy reticle focusing.
Built-In Accuracy Features Matching (MRAD or MOA) turrets and reticles facilitate fast and accurate shooting at extended ranges.US Patent 7,937,879



Dimensions:



LENGTHS
L1 L2 L3 L4 L5 L6
10.9 3.0 2.25 6.85 .05 3.6



HEIGHTS
H1 H2
1.29 1.8

Dimensions measured in inches

PST-1607 Vortex Optics Viper PST Gen II 1-6x24 Riflescope with VMR-2 Reticle (MRAD) - Slightly Used 6

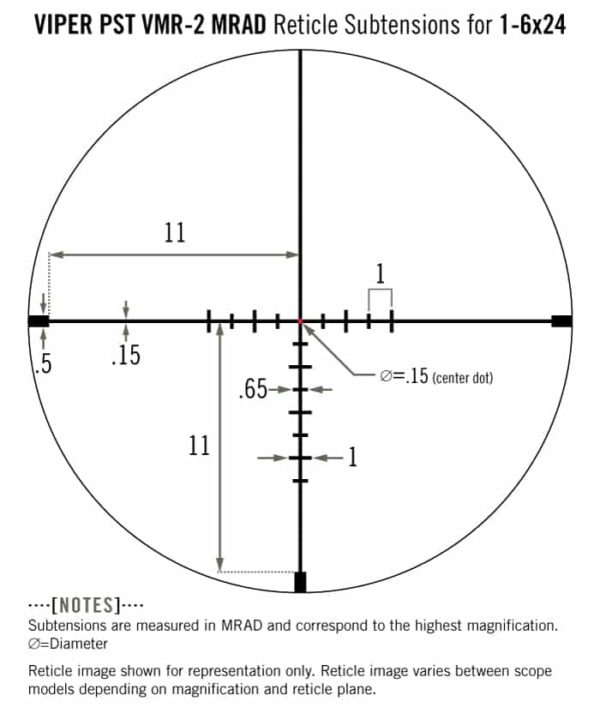

VMR-2 RETICLE (MRAD)

Hash-marked reticle using MOA or MRAD-based subtension lines for ranging, holdover, and windage corrections. Letters refer to reticle subtensions listed in chart below.

NOTE:
Read the Viper PST 1-6x24 Riflescope with VMR-2 MRAD Reticle manual for details on how to effectively determine range, holdover, windage and moving lead corrections.
