PST-14-ST-M Vortex Optics VIPER PST 1-4x24 Rifle Scope with TMCQ Reticle (MRAD)
$713.85
The Viper PST (Precision Shooting Tactical) riflescope boasts features associated with top-tier riflescopes, yet comes in at a street price under the $1,000 mark. Matching reticle and turret measurements allow accurate, fast dialing of shots. The one-piece 30mm tube, precision-machined from a single solid block of aircraft-grade 6061-T6 aluminum, offers ample windage and elevation adjustment. Born from an intimate understanding of riflescope design, forward-thinking engineering, and open ears to a market incredibly vocal about what it wants in a riflescope, the Viper PST series delivers the performance and features tactical shooters demand at an economical price.
Features:
Optical Features:
XD Lens Elements | Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images. |
XR Fully Multi-Coated | Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces. |
Second Focal Plane Reticle | Scale of reticle maintains the same ideally-sized appearance. Listed reticle subtensions used for estimating range, holdover and wind drift correction are accurate at the highest magnification. |
Glass-etched Reticle | Protected between two layers of glass for optimum durability and reliability. |
Illuminated Reticle | Provides precise aiming under low-light conditions. |
Construction Features:
Tube Size | 30 mm diameter. |
Single-Piece Tube | Maximizes alignment for improved accuracy and optimum visual performance, as well as ensures strength and waterproofness. |
Aircraft-Grade Aluminum | Constructed from a solid block of aircraft-grade aluminum for strength and rigidity. |
Waterproof | O-ring seals prevent moisture, dust and debris from penetrating the riflescope for reliable performance in all environments. |
Fogproof | Argon gas purging prevents internal fogging over a wide range of temperatures. |
Shockproof | Rugged construction withstands recoil and impact. |
Hard Anodized Finish | Highly durable low-glare matte finish helps camouflage the shooter's position. |
ArmorTek | Ultra-hard, scratch-resistant coating protects exterior lenses from scratches, oil and dirt. |

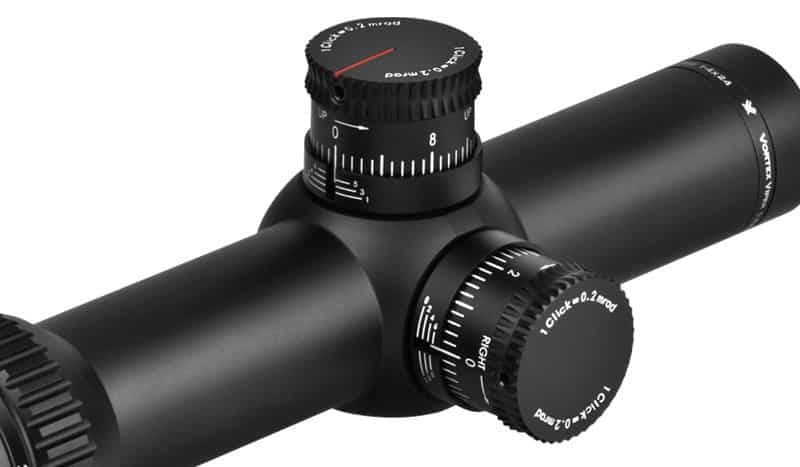

Tactical-Style Turrets | Exposed turrets provide fast, accurate and easily read elevation and windage adjustments. |
Internal Mechanism Design Features:
CRS Zero Stop | Customizable Rotational Stop (CRS) aids in return to zero after dialing temporary elevation correction. |
Precision-Force Spring System | Uses premium components in the erector-spring system to ensure maximum repeatability and ease of adjustment. |
Precision-Glide Erector System | Uses premium components in the zoom lens mechanism to ensure smooth magnification changes under the harshest conditions. |
Convenience Features:

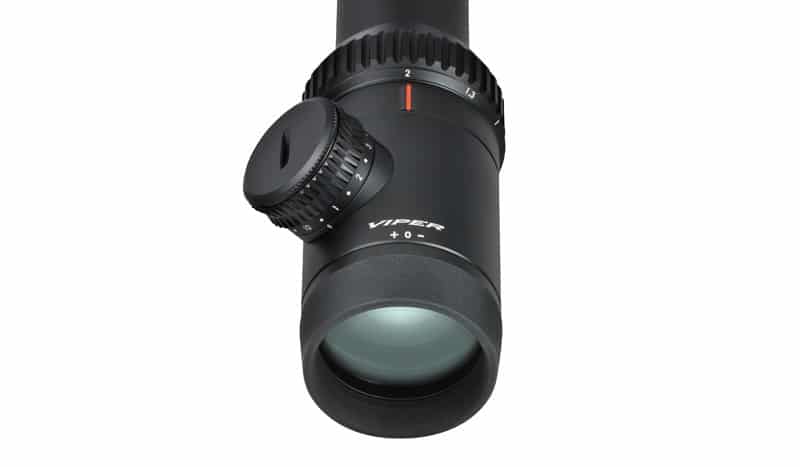

MAG-View Fiber Optic | Provides a highly visible reference point for the magnification setting. |
Radius Bar | Fiber optic turret rotation indicator provides a highly visible and tactile point of reference for turret rotations. US Patent 7,937,879 |
Fast Focus Eyepiece | Allows quick and easy reticle focusing. |
Specifications:
Magnification | 1-4 x |
Objective Lens Diameter | 24 mm |
Eye Relief | 4.0 inches |
Field of View | 98-27.5 feet/100 yards |
Tube Size | 30 mm |
Turret Style | Tactical CRS Zero Stop |
Adjustment Graduation | .2 mrad |
Travel per Rotation | 10 mrad |
Max Elevation Adjustment | 64 mrad |
Max Windage Adjustment | 64 mrad |
Parallax Setting | 100 yards |
Length | 9.7 inches |
Weight | 16.2 ounces |
Product Manual (PDF) | Download |
Product Manual 2 (PDF) | Download |
Included In the Box:
LENGTHS | |||||
L1 | L2 | L3 | L4 | L5 | L6 |
9.7 | 2.5 | 2.2 | 6.0 | - | 3.6 |
HEIGHTS | |
H1 | H2 |
1.18 | 1.63 |
* Dimensions measured in inches.
Reticle:
TMCQ RETICLE (MRAD)
The TMCQ (Tactical Milling Close Quarter) is a hashmarked ranging reticle using MRAD-based subtension lines for ranging, holdover, and windage corrections.

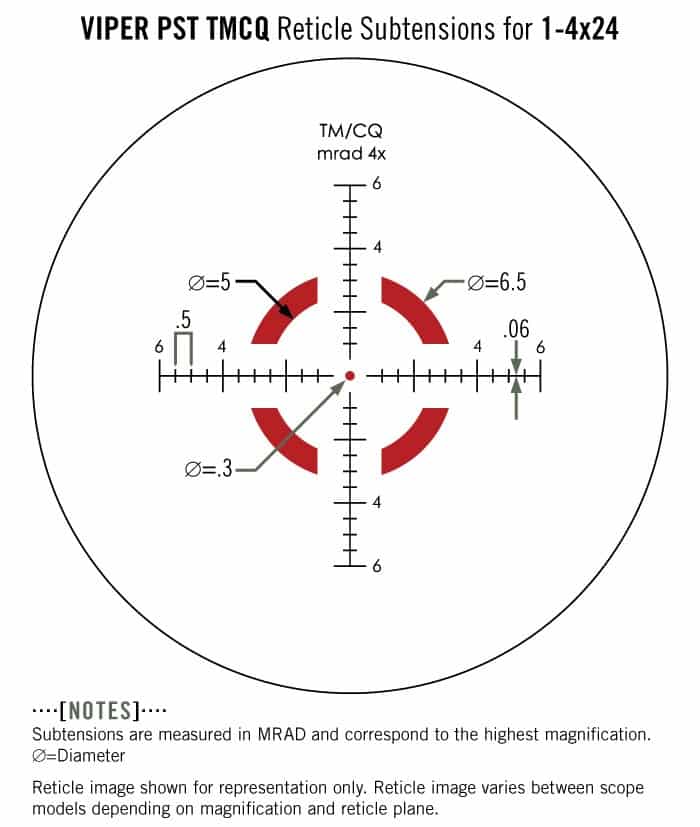

Subtension detail for the Viper PST 1-4x24 riflescope with TMCQ MRAD reticle. >
Note
Read the Viper PST 1-4x24 Riflescope with TMCQ MRAD Reticle manual for details on how to effectively determine range, holdover, windage and moving lead corrections.
