The Aimpoint® Micro H-1 red dot sight has become a very popular hunting sight worldwide due to its size, light weight and robust build quality, it was designed with the hunter in mind. The Aimpoint Micro H-1 is also available as an alternative configuation with Blaser original saddle mount
$659.95

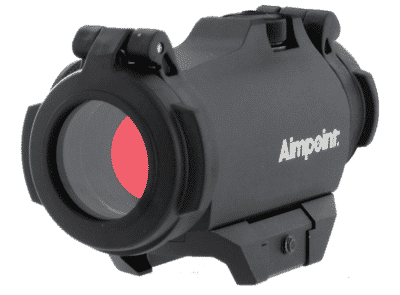

The Micro H-2 is a result of feedback coming from hard core customers desiring an even more hard core Micro sight. With a redesigned and reinforced house body, as well as flip-up covers protecting the lenses, the Micro H-2 can withstand all types of environmental conditions. And thanks to new optical lenses and cutting edge lens coatings, the optical performance and the shape and clarity of the red dot are radically improved.
| GENERAL SPECIFICATIONS |
|---|
| Item No.: 200185 (2 MOA) / 200183 (4 MOA) / 200499 (6 MOA) |
| OPTICAL SPECIFICATIONS |
|---|
| Operating principle: Reflex collimator sight with LED |
| Optical magnification: 1x |
| Aiming dot size: 2 MOA or 4 MOA or 6 MOA |
| Dot intensity: Visible against a background luminance of 0.1 to 55 000 lx |
| Dot color: Peak Wavelength: 655 ± 15 nm |
| NVD compatible: No |
| Optical coating: Anti-reflex, all surfaces and multi-layer |
| Clear aperture: 18 mm (.71 in) |
| Eye relief: Unlimited |
| POWER SOURCE |
|---|
| Battery type: 3V lithium battery, type CR2032 |
| Battery life - Day time use: 50 000h (over 5 years of continuous use) |
| Power intensity: 1 Off position and 12 daylight settings |
| PHYSICAL SPECIFICATIONS |
|---|
| Length sight only: 68 mm (2.7 in) |
| Length conf: 79 mm (3.1 in) |
| Width sight only: 41 mm (1.6 in) |
| Height sight only: 36 mm (1.4 in) |
| Height conf: 47 mm (1.9 in) |
| Weight sight only (incl battery): 94 g (3.3 oz) |
| Weight conf: 130 g (4.6 oz) incl lens covers and mount |
| Housing material: High strength Aluminum |
| Housing finish and color: Semi matte black |
| Material mount and spacer std conf: High strength Aluminum |
| Surface treatment: Anodized, semi matte |
| Height of optical axis - sight and mount: 20 mm (.8 in) over top surface of Picatinny/Weaver Rail |
| Height of optical axis - sight, mount and low spacer: Spacer low: 50 mm (2 in) over top surface of Picatinny/Weaver Rail |
| Height of optical axis - sight, mount and high spacer: Spacer high: 59 mm (2.3 in) over top surface of Picatinny/Weaver Rail |
| Adjustment: Range ±1 m at 100 meters (±1 yds at 100 yds) in windage and elevation, 1 click = 13 mm at 100 meters = 10 mm at 80 meters = .44 in at 100 yds |
| ENVIRONMENTAL SPECIFICATIONS |
|---|
| Temperature range operation: -30°C to +60°C (-20°F to +140°F) |
| Temperature range storage: -51°C to +71°C (-60°F to +160°F) |
| Temperature shock: Operable after a temperature shock between -30°C and +60°C (-22°F and +140°F) |
| Humidity: Operable during and after Humidity. Limits: RH: 95%, Temp: +20°C to +50°C (+68°F to +122°F), cyclic |
| Submersible: To a depth of 5 m (15 ft) |
| Shock: Withstands shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction). |
| Vibration: Withstands vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min. Direction: X, Y and Z, Time: 30 min/direction. |
| Chemical resistance: Withstands occasional contamination by weapons cleaners, lubricants, fuels and insect repellents. |
