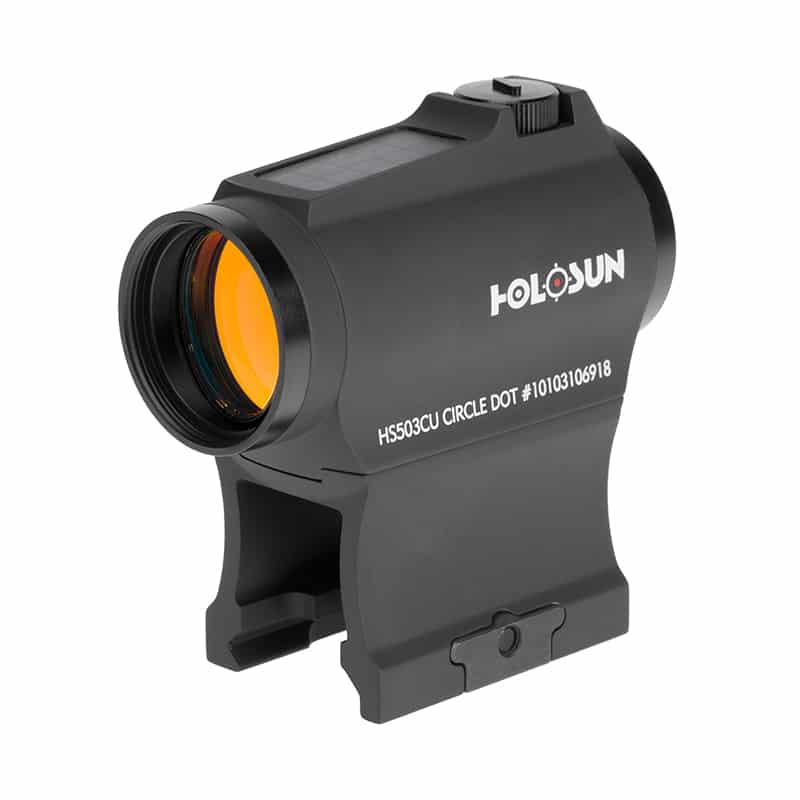

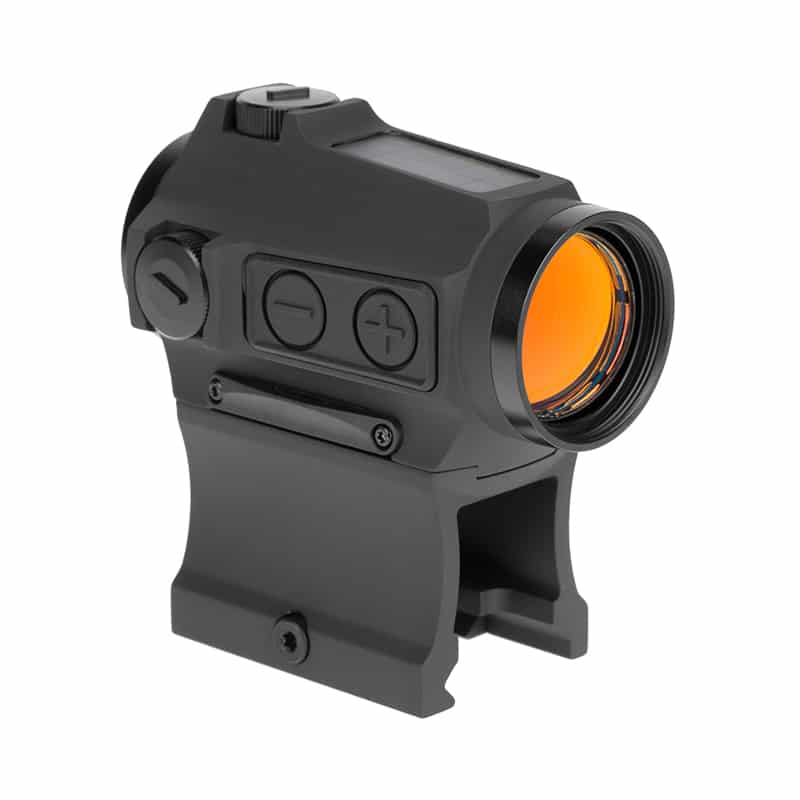

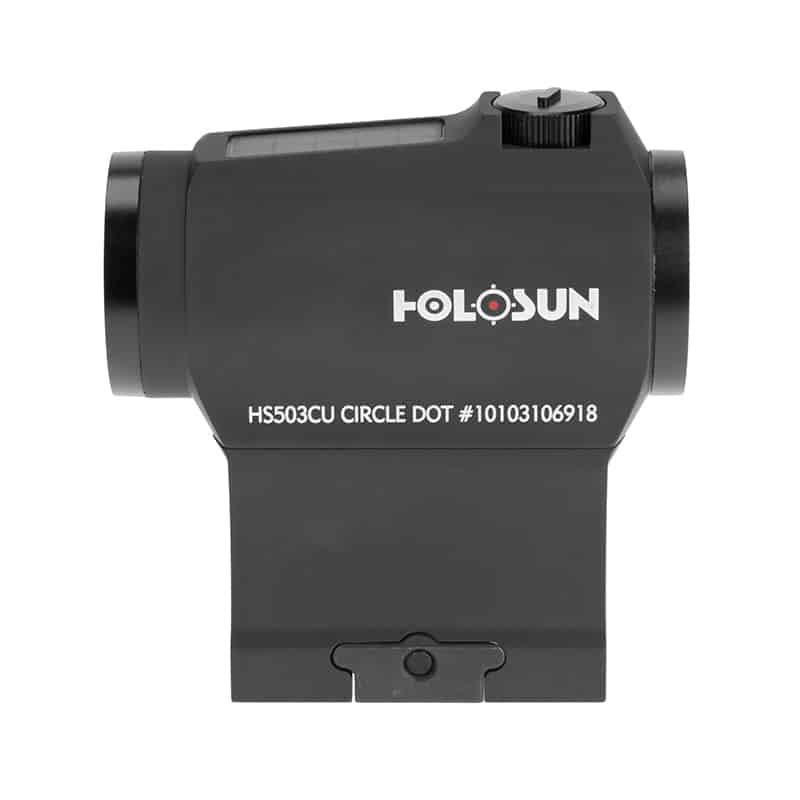

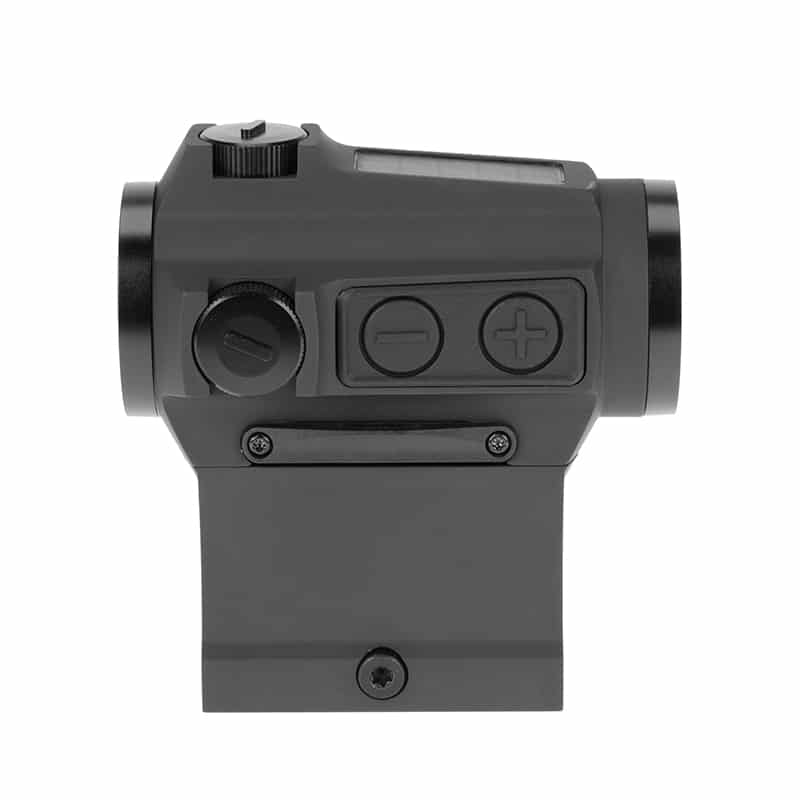

Holosun HS503CU Red Dot / Circle Dot Reflex Sight With Solar Panel

Description

The HS503CU is a 20mm micro optical sight designed for rifle and carbine applications. Features include Solar Failsafe, Shake Awake, 12 brightness settings, Holosun’s Super LED with up to 50k hours battery life, and Multi-Reticle System.

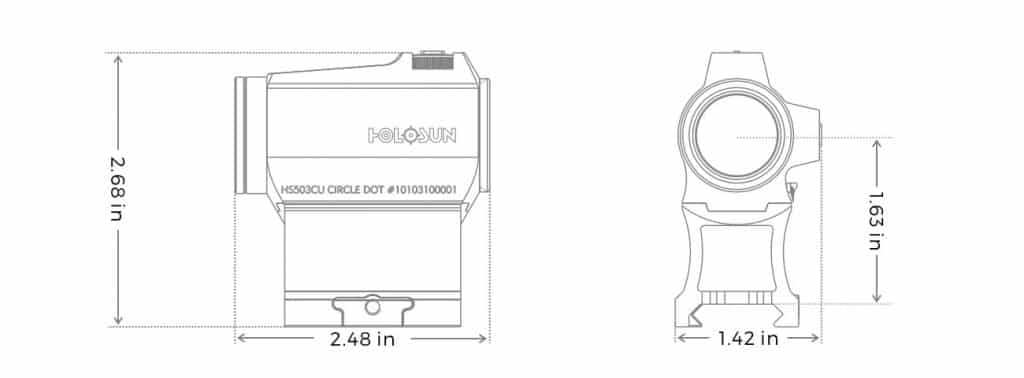

Holosun HS503CU Dimensions

Holosun HS503CU Package

• Lower 1/3 Cowitness Mount
• Low Profile Mount
• T10 L Key
• Rubber Cover
• User Manual
• CR1632 Battery
• Lens Cloth

Holosun HS503CU Tech & Features

• MRS: Circle Dot; 2 MOA Dot; 65 MOA Circle
• Up to 50,000 Hours Battery Life (Setting 6)
• 12 Brightness Setting: 10 DL & 2 NV Compatible
• Convenient Tray Battery Compartment
• Parallax-free & Unlimited Eye Relief
• Solar Failsafe™
• Shake Awake™
• Multiple Reticle System
• Super Green LED
• Multilayer Reflective Glass

Holosun HS503CU Specification

• OPTICAL DATA
• • Reticle : 2 MOA Dot & 65 MOA Circle
  • Light Wavelength : 650nm
  • Reticle Color : Red
  • Parallax Free : Yes
  • Unlimited Eye Relief : Yes
  • Magnification : 1x
  • Multi-Coatings :Yes
• ELECTRONIC DATA
  • Power Source : Solar & Battery
  • Battery Type : CR2032
  • Battery Life (Hours) : 50000
  • Brightness Setting : 10 DL&2 NV
• PHYSICAL DATA
  • Window Size : 20mm Diameter
  • Dimension (in) : 2.6×1.43×1.6
  • Weight (oz) : 3
• MECHANICAL DATA
  • Housing Material : 6061 T6 Aluminum
  • Surface Finish : MAO
  • Adjustment per Click : 0.5 MOA
  • W&E Travel Range : ±50 MOA
• ENVIRONMENT DATA
  • Storage Temperature : -40℃~70℃
  • Working Temperature : -30℃~60℃
  • Submersion : IP67
  • Vibration : 1000G
