OVERVIEW:

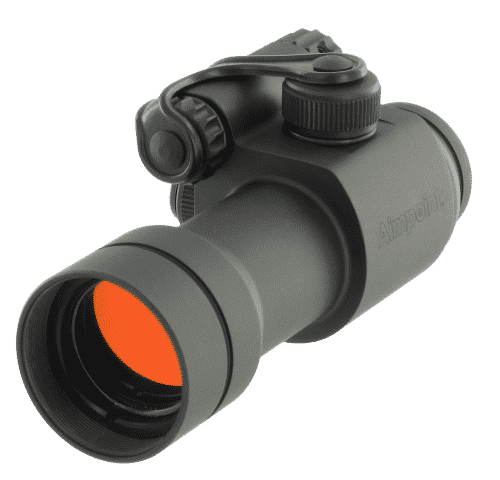

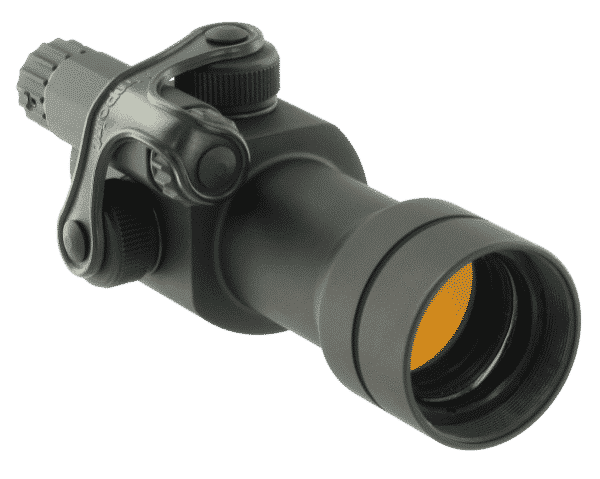

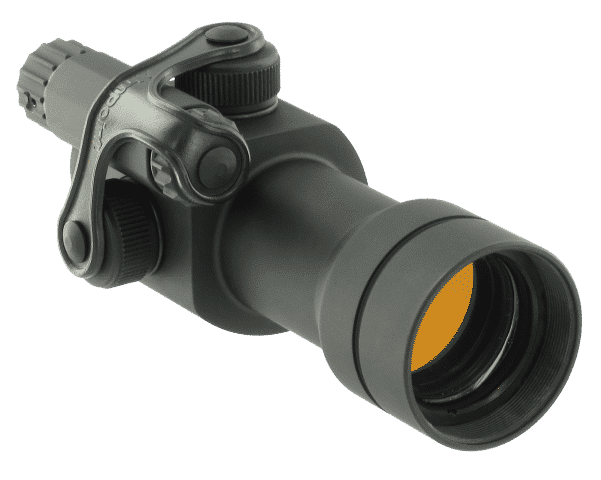

When police and armed forces personnel are on duty, they need their equipment to handle just about any situation, anytime, anywhere. That’s why Aimpoint created the CompM3, a revolutionary sight that offers the highest standard available for sight systems technology.
The Aimpoint® CompM3 is a very popular sight which is in use with many police and armed forces personnel. When you purchase the CompM3 there is a variety of mounts to choose from. This gives you the opportunity to customize your sight from scratch.

STANDARD CONFIGURATION

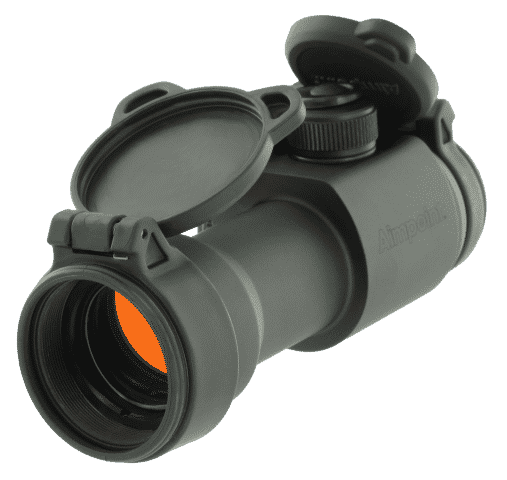

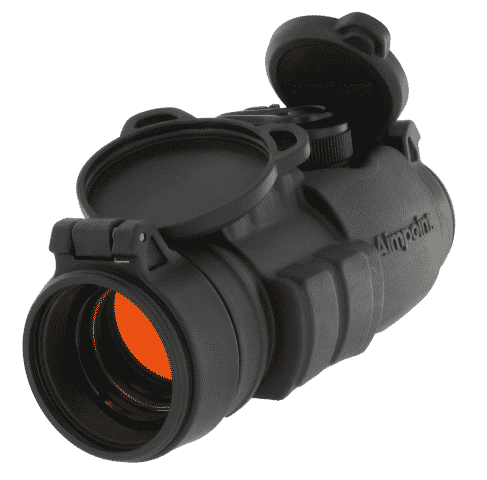

CompM3 is shipped with flip covers and a replaceable outer black rubber cover, which protects the sight during transport and operations, and adds an additional stealth factor.

CUSTOMIZE YOUR SIGHT:

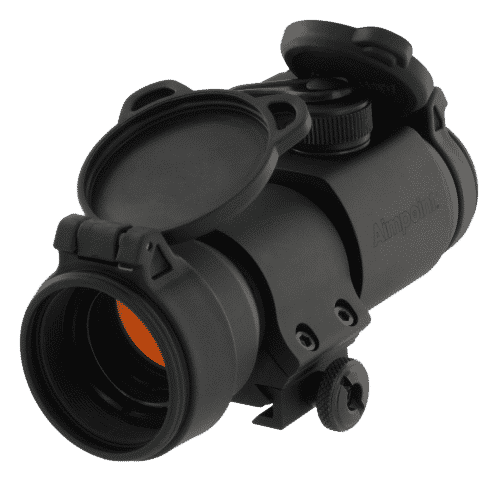

Accessories and mounts are available if you want to upgrade your CompM3.

Please note that the appearance of some components of this product such as the rubber strap, the covers for the adjustment screws and the battery lid have recently been changed.

UNIQUE FEATURES:
Compatible with every generation of NVD
New technology called ACET allows 50,000 hours of operation on one single battery (on setting 7 out of 10)
500,000 hours of use on NVD setting
Unequalled light transmission
Available in 2 dot sizes (2 and 4 MOA)
Submersible to 45 meters (135 feet)
Comes with replaceable outer black rubber cover
Outer rubber cover also available in Dark Earth Brown

GENERAL SPECIFICATIONS:
Art.No: 11408 (2MOA), 11403 (4MOA)

OPTICAL SPECIFICATIONS:
Operating principle: Reflex Collimator sight with LED
Optical magnification: 1x
Aiming dot size: 2 or 4 MOA
Dot intensity: Visible against a background luminance of 0,1 to 55 000 lx
Optical signature: No optical signature is visible at 10 meter distance, front side, on appropriate settings with NVD 3
Dot color: Peak Wavelength: 650 ± 10 nm
NVD compatible: Yes
Optical coating: Anti-reflex, all surfaces and multi-layer. NVD-Compatible 1, 2, 3
Clear aperture: 23 mm
Eye relief: Unlimited

POWER SOURCE:
Battery type: 3V lithium battery, type 2L76 or DL1/3N.
Battery life – Day time use: 50 000 h continuous (pos. 6 of 10)
Power intensity: 4 NVD and 6 Daylight, of which 1 extra bright

PHYSICAL SPECIFICATIONS:
Length sight only: 115 mm (4 1/2″)
Length conf: 130 mm (5 1/8″) incl rubber cover and flip-up lens covers
Width: 62 mm (2 7/16″), incl rubber cover, 55 mm (2 3/16″) without
Height sight only: 55 mm (2 3/16″) without rubber cover
Height conf: 58 mm (2 5/16″) incl rubber cover
Weight sight only (incl battery): 220 g (7,8 oz)
Weight conf: 270 g (9,5 oz) incl. Lens Covers, and Rubber Cover
Housing material: High Strength Aluminum
Housing finish and color: Matte black
Material mount and spacer std conf: High Strength Aluminum
Surface treatment: Hard anodized, matte, with protective rubber armor cover
Height of optical axis – sight and mount: 30 mm (1 3/16″) over top surface of Picatinny/Weaver Rail
Height of optical axis – sight, mount and Micro spacer XX: 39 mm (1 9/16″) over top surface of Picatinny/Weaver Rail
Adjustment: Range ±2 m at 100 meters (±2 yds at 100 yds) in windage and elevation, 1 click = 16 mm at 100 meters = 13 mm at 80 meters = 9/16″ at 80 yds

ENVIRONMENTAL SPECIFICATIONS:
Temperature range operation: -45°C to 71°C (-49°F to 160°F)
Temperature range storage: -51°C to 71°C (-60°F to 160°F)
Temperature shock: Operable after a temperature shock between -45°C and +71°C. Duration: 4h of Hot +71°C, 4h of Cold -45°C. Cycling: 3 times
Humidity: Operates despite humidity. Limits: RH: 95%, Temp: 20ºC to 50 ºC, cyclic
Immersion, static: Operates after immersion until temperature is stabilized + 10°C compared to the water. Limits: Depth: 45 m (150 ft.)
Shock: Operable before and after shock. Limits: X-axis: 500 g, 0.7 – 1.1 ms (3 shocks), Y-axis: 40g ±4g, 11 ±1ms (2 shocks in each direction, Z-axis: 40g ±4g, 11 ±1ms, 2 shocks in each direction. Functional during exposure (room temperature)
Vibration: Operates despite vibration. Limits: Vibration, sinusoidal in a frequency range of 10-150 Hz. Frequency: 10-30 Hz, ±1.587 mm, Frequency: 30-150 Hz. 5.75 g, 1 octave/min
Chemical resistance: Withstands occasional contamination of: Hydraulic oil (FSD 8407, Tryckolja 021), Lubricating oil (FSD 8127, Motorolja 5W/30), Lubricating oil (FSD 8220, Smörjfett 220), Lubricating oil (Break Free), Fuels (FSD 8612, Diesel fuel oil), Solvents/cleaning (FSD)
